| مادة: | 100٪ بوليستر بكر / راتينج | القطر: | 1.0-5.0mm |
|---|---|---|---|
| شكل شبكة:: | سداسية | شكل القفص:: | أسطواني / مربع / مخروط مقطوع / مقطوع أو أشكال أخرى |
| خدمات أخرى:: | متابعة خدمة الصيانة | اسم: | غي شبكة سلكية سداسية |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | galvanized steel hexagonal protective net,welded animal cage mesh,sturdy metal wire mesh |
||

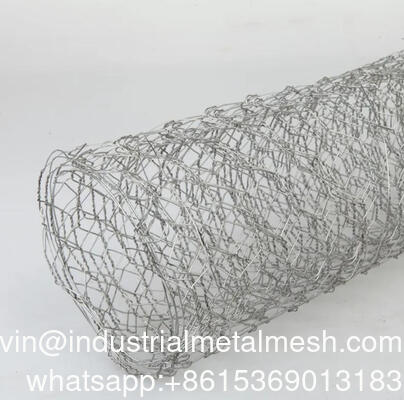

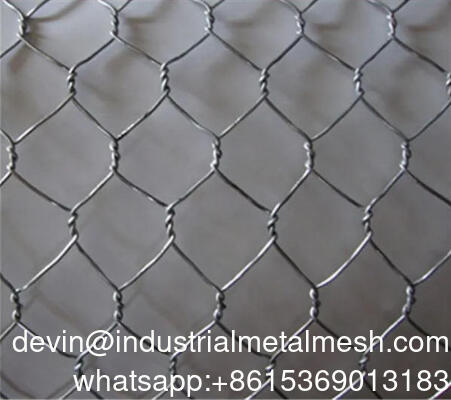

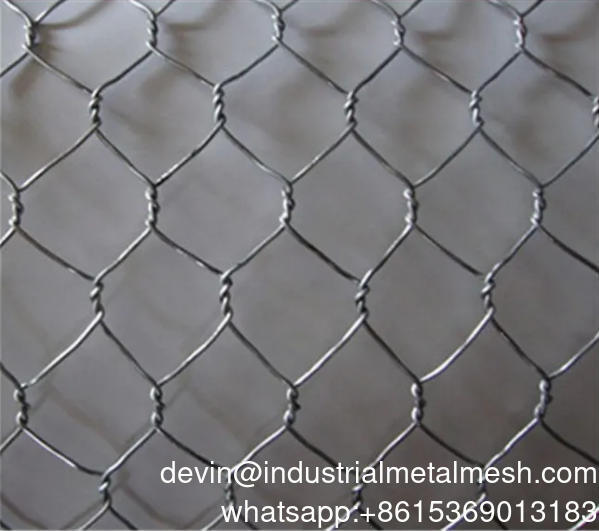

Sturdy Galvanized Steel Hexagonal Protective Net-Multi-Functional Welded Animal Cage Mesh
Materials: low carbon steel wire and stainless steel wire
Weaving methods:
Hexagonal wire netting electro-galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
Applications: used for reinforcement, protection and heat preservation
Application areas: construction, chemical, cultivation, food processing, fishing industry and gabion box
Hole: 3/8 to 4 inches
Wire diameter: 0.38 to 3.6mm
Width: 0.2 to 2.2m
Weaving method:
Hexagonal wire netting electro galvanized before weaving
Hexagonal wire netting hot-dip galvanized before weaving
Hexagonal wire netting hot-dip galvanized after weaving
Hexagonal wire netting PVC-coated before or after weaving
Stainless steel hexagonal wire netting
| Specification of hexagonal wire netting | ||||||
| Specifications | Wire Diameter | Width | ||||
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
| 3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
| 1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
| 1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
| 1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
| 1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
| 2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
| 3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
| 4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |
PVC Coated Hexagonal Wire Netting |
|||
Mesh |
Wire Gauge (MM) |
Width |
|
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
Application
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.
Characteristics
1. Good Anti-Corrosion Performance:
The Galvanized Layer Can Effectively Isolate The Hexagonal Mesh From Contact With The Atmosphere And Moisture, And Prevent The Mesh Body From Being Corroded And Rusted.
2. Long Service Life:
The Zinc-Gold Layer Has Better Corrosion Resistance And Can Prolong The Service Life Of The Hexagonal Mesh.
3. Beautiful Appearance:
The Galvanized Layer Is Uniform And The Brightness Is High, Which Makes The Hexagonal Mesh Have A Better Appearance.
4. Easy Maintenance:
Galvanized Hexagonal Mesh Is Easier To Clean And Maintain During Use, And It Is Not Easy To Accumulate Dust And Dirt.
Application
Application

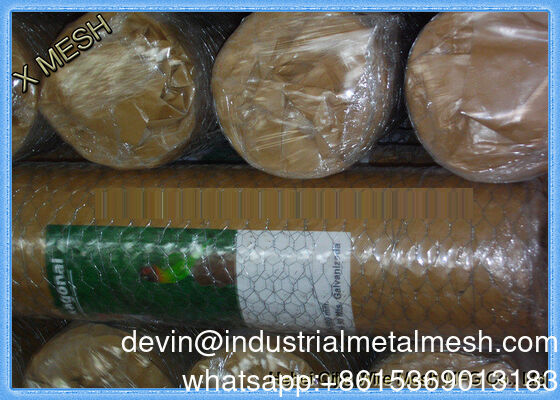

Normally each roll is packed with plastic water proof bags.black water proof paper, shrink wrapped or as the clients' requirement.
