OEM High Quality Popular Economic Welded Steel Grating for Foot Traffic, Drain Cover and Light Duty Floor

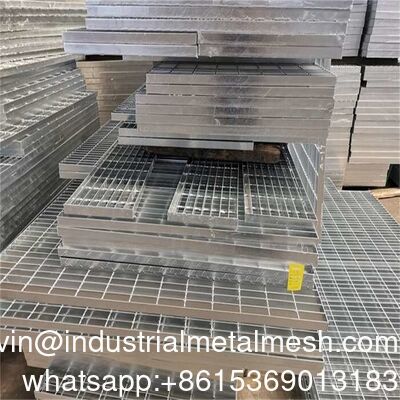

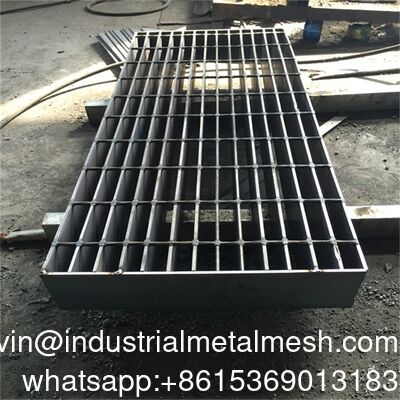

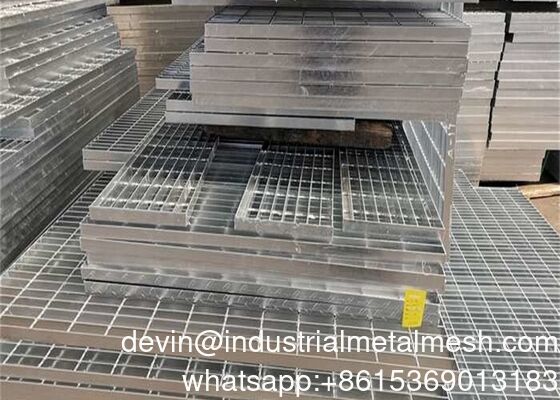

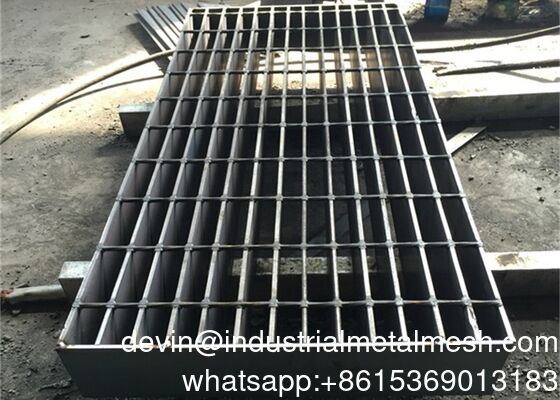

صورة كبيرة : OEM High Quality Popular Economic Welded Steel Grating for Foot Traffic, Drain Cover and Light Duty Floor

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	Dimpled Hole Metal Sheets
رقم الموديل:	صفائح معدنية ذات فتحة مدملة

شروط الدفع والشحن:

الحد الأدنى لكمية:	10 قطع
تفاصيل التغليف:	المنصات
وقت التسليم:	15-18days
شروط الدفع:	30٪ مقدما ، التوازن قبل التحميل
القدرة على العرض:	1000 قطعة

مفصلة وصف المنتج

التركيب الكيميائي:	Fe ، C ، Si ، Mn ، S ، P	سبيكة أم لا:	غير سبائك
القدرة على حل المشروع:	التصميم الجرافيكي، تصميم النماذج ثلاثية الأبعاد، الحل الشامل للمشاريع	طلب:	فيلا
المعالجة السطحية:	الجلفنة بالغمس الساخن أو الطلاء أو غير المعالجة	طول صر:	1000 ملم
عرض صر:	800 ملم	عرض شريط المحمل × سمك:	25x3 ملم
تحمل شكل شريط:	عادي ، مسنن I بار من النوع Style Steel Grating	عبر شكل شريط:	دائري ، ملتوي ، شكل شريط
حجم الشبكة:	30x100 ملم	بريد إلكتروني:	devin@industrialmetalmesh.com
واتساب:	+8615369013183
إبراز:	welded steel grating for foot traffic , galvanized steel grating drain cover , light duty floor steel grating

OEM High Quality Popular Economic Welded Steel Grating for Foot Traffic, Drain Cover and Light Duty Floor

Galvanized Steel Grating

The Grating Stanchions Railing System with Ball Joint Handrails is an advanced, integrated safety solution engineered specifically for use with steel and safety grating platforms, walkways, and stair treads. This system combines robust structural support with sleek, modern aesthetics, offering superior fall protection and enhanced user safety in industrial, commercial, and public environments. The ball joint design ensures smooth connections, durability, and a professional appearance, making it an ideal choice for applications where both safety and visual appeal are prioritized.

Core manufacturing process: "Substrate molding + Hot-dip galvanizing"

The production of galvanized steel grating involves two core steps:
Step 1: Manufacturing of steel grid plate base board
1. Resistance welding forming (main process): The load-bearing flat steel and the crossbar (twisted square steel) are welded together as a whole using a large resistance welding machine. This process is highly efficient and has high strength.
2. Locking press forming: It is connected through mechanical methods of punching and locking compression, without welding points, and the shape is smooth.
Step 2: Hot-dip Galvanizing Treatment (Key to Corrosion Prevention)
This is the core process that gives the steel grating board its lasting vitality. The procedure is meticulous:
· Acid pickling and rust removal: Immerse the welded steel grating plates in a hydrochloric acid tank to thoroughly remove the oxide scale and rust from the surface.
· Water washing for plating assistance: After cleaning with the acid solution, immerse it in a zinc ammonium chloride plating aid solution to prevent re-oxidation of the substrate and enhance the adhesion of the zinc layer.
· Drying: Dry the steel grating plates to avoid zinc spitting during the immersion zinc process.
· Hot-dip galvanizing: Immerse the dried steel grating plates in molten zinc at approximately 450°C, where complex iron-zinc metallurgical reactions occur, forming a dense zinc-iron alloy layer on the steel surface.
· Cooling: After removal, let it cool naturally or cool with water to form a shiny silver-gray final appearance.
· Quality inspection and adjustment: Check the thickness and uniformity of the coating, and make adjustments for a few zinc nodules.

Specification

Learn more about the main components of metal bar grating
Material	Carbon Steel , Stainless Steel
surface treatment	Hot dip galvanizing,Painting,Spray coating,self colour
Product Process	Fully automatic pressure welding , manual welding
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
Steel Grade	ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Grating Standard	China: YB/T 4001.1-2007 USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST
Russian Standard
Common spacing of load-bearing flat steel:	11, 22, 33, 44
Common spacing for connecting flat steel:	11, 22, 33, 66
Surface treatment	Plating thickness ≥70 μm
Custom specifications available upon request

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating OEM High Quality Popular Economic Welded Steel Grating for Foot Traffic, Drain Cover and Light Duty Floor 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
