تفاصيل المنتج:
شروط الدفع والشحن:
|
| التركيب الكيميائي: | Fe ، C ، Si ، Mn ، S ، P | سبيكة أم لا: | غير سبائك |
|---|---|---|---|
| القدرة على حل المشروع: | التصميم الجرافيكي، تصميم النماذج ثلاثية الأبعاد، الحل الشامل للمشاريع | طلب: | فيلا |
| المعالجة السطحية: | الجلفنة بالغمس الساخن أو الطلاء أو غير المعالجة | طول صر: | 1000 ملم |
| عرض صر: | 800 ملم | عرض شريط المحمل × سمك: | 25x3 ملم |
| تحمل شكل شريط: | عادي ، مسنن I بار من النوع Style Steel Grating | عبر شكل شريط: | دائري ، ملتوي ، شكل شريط |
| حجم الشبكة: | 30x100 ملم | بريد إلكتروني: | devin@industrialmetalmesh.com |
| واتساب: | +8615369013183 | ||
| إبراز: | Durable steel sheet grating,Galvanized steel grating with warranty,Steel grating variable bearing pitch |
||

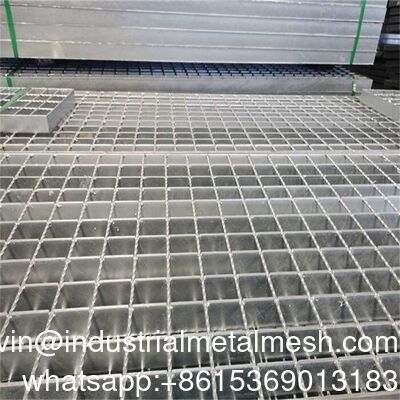

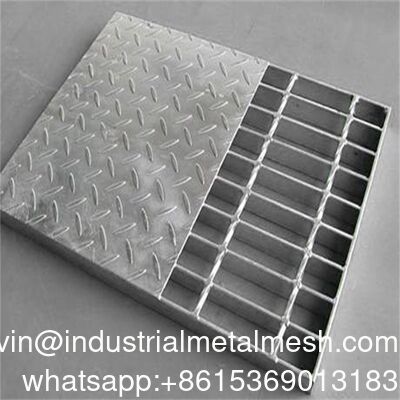

Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options
|
Learn more about the main components of metal bar grating
|
|
|
Material
|
Carbon Steel , Stainless Steel
|
|
surface treatment
|
Hot dip galvanizing,Painting,Spray coating,self colour
|
|
Product Process
|
Fully automatic pressure welding , manual welding
|
|
Bearing Bar
|
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6,
75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
|
US standard: 25.4 x 4.8 mm 31.8 x 4.8 mm 38.1 x 4.8 mm 25.4 x 6.4 mm 31.8 x 6.4 mm 38.1 x 6.4 mm 25.4 x 3.2 mm 31.8 x 3.2 mm 38.1 x 3.2 mm etc
|
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
|
|
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
|
|
|
Twisted Cross Bar Pitch
|
38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, etc.
|
|
Steel Grade
|
ASTM A36, A1011, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
|
|
Grating Standard
|
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88) UK: BS4592-1987 Australia: AS1657-1985 Japan: JIS Russia:GOST |
|
Russian Standard
|
|
|
Common spacing of load-bearing flat steel:
|
11, 22, 33, 44
|
|
Common spacing for connecting flat steel:
|
11, 22, 33, 66
|
|
Surface treatment
|
Plating thickness ≥70 μm
|
|
Custom specifications available upon request
|
|
Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.
Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.
Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
