تفاصيل المنتج:
شروط الدفع والشحن:
|
| التركيب الكيميائي: | Fe ، C ، Si ، Mn ، S ، P | سبيكة أم لا: | غير سبائك |
|---|---|---|---|
| القدرة على حل المشروع: | التصميم الجرافيكي، تصميم النماذج ثلاثية الأبعاد، الحل الشامل للمشاريع | طلب: | فيلا |
| المعالجة السطحية: | الجلفنة بالغمس الساخن أو الطلاء أو غير المعالجة | طول صر: | 1000 ملم |
| عرض صر: | 800 ملم | عرض شريط المحمل × سمك: | 25x3 ملم |
| تحمل شكل شريط: | عادي ، مسنن I بار من النوع Style Steel Grating | عبر شكل شريط: | دائري ، ملتوي ، شكل شريط |
| حجم الشبكة: | 30x100 ملم | بريد إلكتروني: | devin@industrialmetalmesh.com |
| واتساب: | +8615369013183 | ||
| إبراز: | galvanized steel grating walkway,easy install steel grating platforms,galvanized bar grating platforms |
||

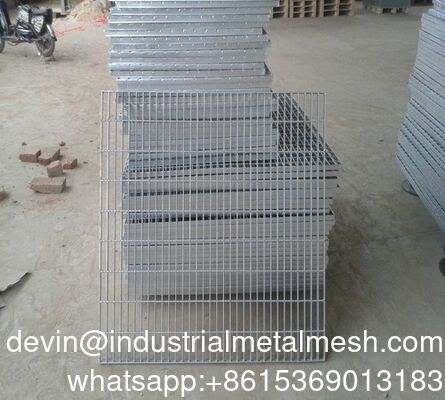

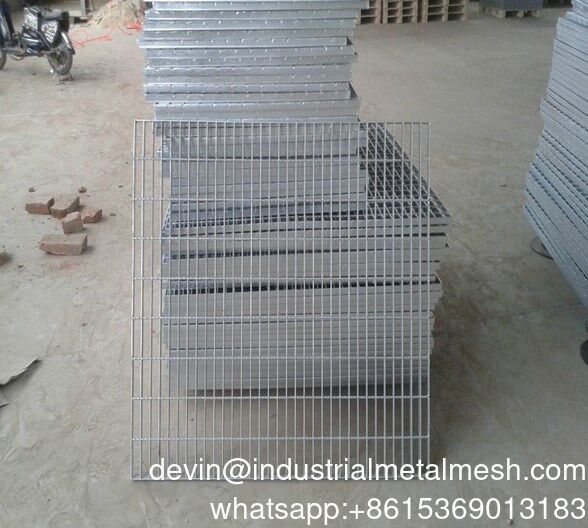

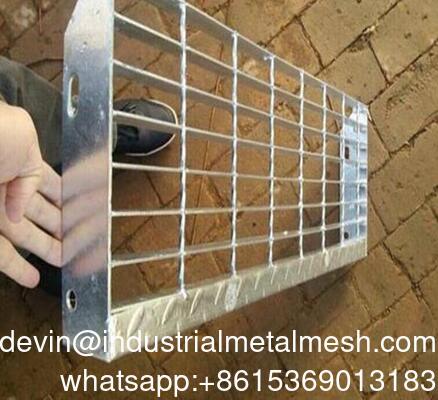

Easy Install Galvanized Steel Grating Bar Grating Walkway Platforms
|
Item
|
Description
|
|
Bearing bar
|
20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, or as customers' requirements.
|
|
Bearing bar pitch
|
25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, or as customers' requirements.
|
|
Cross bar
|
5x5, 6x6, 8x8mm (twisted bar or round bar) or as customers' requirements.
|
|
Cross bar pitch
|
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirements.
|
|
Surface treatment
|
Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as per customers' requirement.
|
|
Flat bar type
|
Plain, Serrated (tooth-like), I bar (I section)
|
|
Material standard
|
Low carbon steel (CN: Q235, US: A36, UK: 43A)
|
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
|
Material
|
Carbon Steel, Stainless Steel, Aluminum
|
|
|
Surface treatment
|
Hot dipped galvanized, Spray painting, Polished and powder coated
|
|
|
Bearing bar type
|
Plain(Flat) bar, Serrated bar, I-bar, etc.
|
|
|
Common specification
|
||
|
Bearing bar pitch (mm)
|
Cross bar pitch (mm)
|
Bearing bar size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch) |
|
30
|
100
|
WSG_203/253/323/403/205/325/405/455/505/555_30_100
|
|
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_30_50
|
|
40
|
100
|
WSG_203/253/323/403/205/325/405/455/505/555_40_100
|
|
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_40_50
|
|
60
|
50
|
WSG_203/253/323/403/205/325/405/455/505/555_60_50
|
|
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
|
||
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
Packaging Details
Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
