تفاصيل المنتج:
شروط الدفع والشحن:
|
| التركيب الكيميائي: | Fe ، C ، Si ، Mn ، S ، P | سبيكة أم لا: | غير سبائك |
|---|---|---|---|
| القدرة على حل المشروع: | التصميم الجرافيكي، تصميم النماذج ثلاثية الأبعاد، الحل الشامل للمشاريع | طلب: | فيلا |
| المعالجة السطحية: | الجلفنة بالغمس الساخن أو الطلاء أو غير المعالجة | طول صر: | 1000 ملم |
| عرض صر: | 800 ملم | عرض شريط المحمل × سمك: | 25x3 ملم |
| تحمل شكل شريط: | عادي ، مسنن I بار من النوع Style Steel Grating | عبر شكل شريط: | دائري ، ملتوي ، شكل شريط |
| حجم الشبكة: | 30x100 ملم | البريد الإلكتروني: | devin@industrialmetalmesh.com |
| واتس اب: | +8615369013183 | ||
| إبراز: | stainless steel interlocking grating,modular steel grating for data centers,galvanized steel interlocking grating,modular steel grating for data centers,galvanized steel interlocking grating |
||

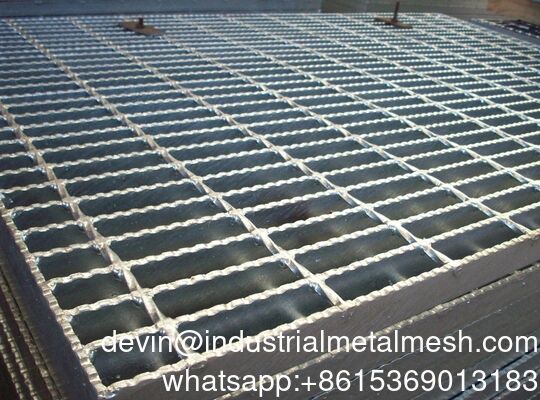

Stainless Steel Modular Interlocking Steel Grating for Data Centers
|
Production name
|
Steel grating
|
|
Material
|
Carbon steel, Stainless steel, Aluminum
|
|
Surface treatment
|
Hot dipped galvanized, Spray-painting, Polished and powder coated
|
|
Bearing Bar type
|
Flat bar, Serrated bar, I-bar, inserting steel grating etc
|
|
Beaing bar size
|
20*3mm, 25*3mm, 30*3mm, 32*3mm, 40*3mm, 50*3mm, 60*3mm, 70*3mm
20*4mm, 25*4mm, 30*4mm, 32*4mm, 40*4mm, 50*4mm, 60*4mm, 70*4mm
20*5mm, 25*5mm, 30*5mm, 32*5mm, 40*5mm, 50*5mm, 60*5mm, 70*5mm
|
|
Mesh size
|
30*100mm, 40*100mm, 50*100mm,
30*50mm, 40*50mm, 50*50mm,
30*30mm, 34*38mm
|
|
Use to
|
flooring, catwalk, decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.
|
metal walking grates introduction-- galvanized road drainage grates
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted
steel grating standard-- galvanized road drainage grates
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
Advantages:
high strength, anti-slip, ventilation and light transmission properties.
Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.
