تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | فُولاَذ | طلب: | القوالب والقوالب ، لوحة السفينة ، لوحة الغلاية ، لوحة الحاوية ، لوحة الحافة |
|---|---|---|---|
| تقنية: | المدرفلة على البارد | استخدام خاص: | أدوات القطع ، أدوات القياس ، قواطع من الصلب العادي ، ألواح فولاذية عالية القوة ، فولاذ مقاوم للتآكل |
| الحجم الطبيعي: | 665/800/840/900/1050 | سماكة: | 0.12-1.2 ملم |
| إبراز: | zinc roofing sheet panels,corrugated IBR roof panels,metal roofing sheet profiles,corrugated IBR roof panels,metal roofing sheet profiles |
||

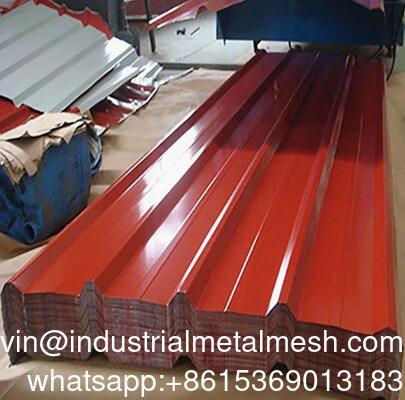

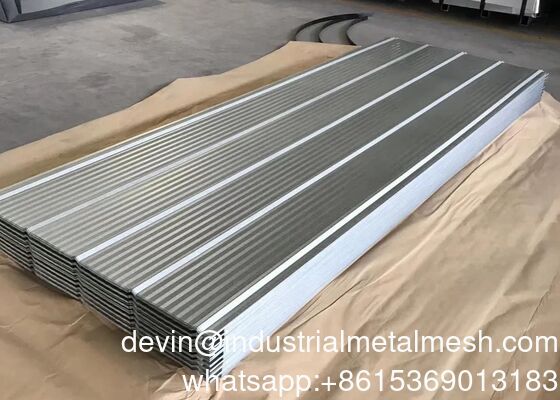

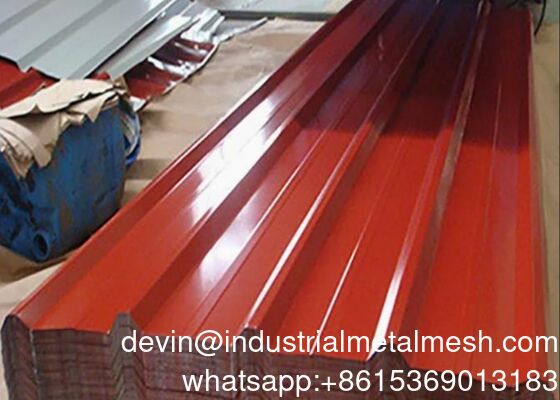

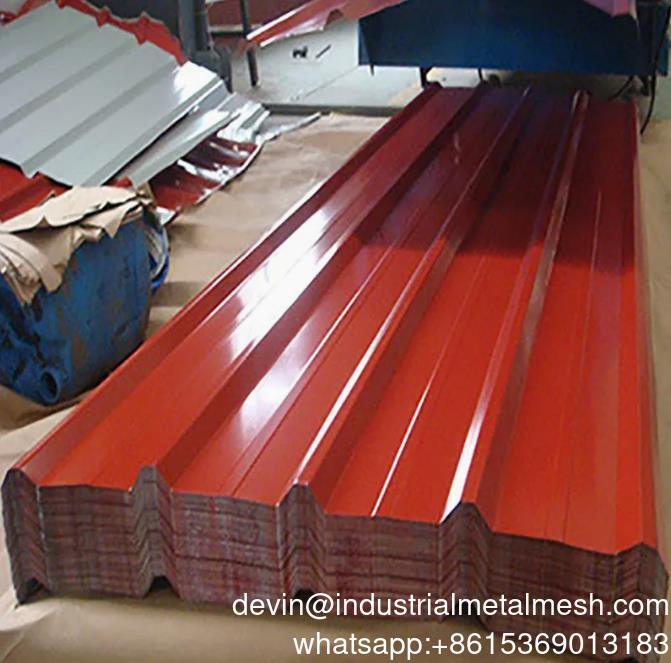

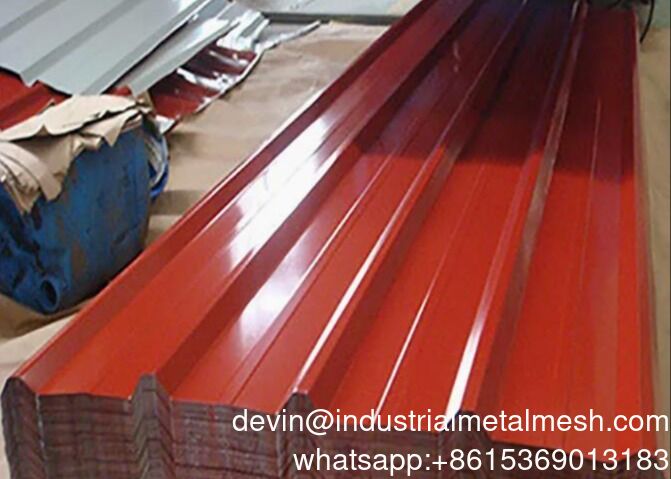

Roofing Sheet Profile Zinc Tile Corrugated & Ibr Roof Panel
GALVANISED CORRUGATED STEEL SHEETRoofing Sheet is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to insulate it from the elements. Most of the
corrugated roofing and siding products seen today and for many years past are made with a galvanized finish. It is most commonly used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing.
|
Basic Info
|
Product Name
|
Galvanized Steel Sheet/Coil / Galvalume Steel Sheet/Coil
|
|
|
Model NO.
|
SGCC, DX51D+Z, S350GD+AZ, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z, S280GD+Z, S550GD+Z, AZ150
|
|
|
Trademark
|
HXHSTEEL, Baosteel, Shagang
|
|
|
Origin
|
China
|
|
|
MOD
|
50 Tons
|
|
|
Delivery Time
|
Stock: 7-10 days; Customized: 15-21 days (Subject to quantity)
|
|
|
Price Terms
|
FOB, CFR, CIF
|
|
|
Payment Terms
|
T/T, L/C
|
|
|
Production Capacity
|
200,000 Tons/Year
|
|
|
Packing Clause
|
Standard export seaworthy packing
|
|
|
Terms of Shipment
|
Sea freight
|
|
|
Port
|
Shanghai, Tianjin
|
|
|
HS Code
|
72104900 (Galvalume) / 72103000 (Galvanized) (Select based on coating type)
|
|
Tech Specs
|
Substrate Material
|
Steel
|
|
|
Substrate Grade
|
SGCC, SPCC, DC51D, DX51D, DX52D, SGHC, SAPH370, SAPH400, SPHC, SS330, SS400, A653 CS Type B
|
|
|
Specification
|
Thickness: 0.12 - 6.0 mm; Width: 600 - 1850 mm (Customizable); Length: Customizable (Sheet); Zinc Coating: 30 - 600 g/m²; Coil Wt: 3 - 8 tons; Coil ID: 508mm / 610mm
|
|
|
Zinc Coating Weight
|
Regular spangle, Minimal spangle, Zero spangle, Large spangle
|
|
|
Coating System
|
Hot-dip Galvanizing (on hot-rolled or cold-rolled substrate)
|
|
|
Surface Treatment
|
Galvanized, Galvalume, Color coated, Hot-dip, Passivated/Non-passivated, Oiled/Non-oiled, Skin passed
|
|
|
Color Standard
|
Excellent corrosion resistance, good formability, aesthetic appeal, paintability, long service life.
|
|
|
Product Features
|
China: GB/T2518, GB/T12754, GB/T14978
USA: ASTM A653, ASTM A792, ASTM A875, ASTM A755, ASTM A924 Japan: JIS G3302, JIS G3312, JIS G3321, JIS G3350, JIS G3466 Germany: DIN EN 10346, DIN 17162, DIN 59232, DIN EN 10169, DIN EN 10143 International: ISO 3575, ISO 5002, EN 10346, EN 10169, EN 10142 |
|
Std & Cert
|
Standard
|
ISO9001, RoHS, IBR
|
|
|
Certificate
|
Mill Test Certificate (MTC)
|
|
|
Certificate of Quality
|
Third-party inspection accepted (SGS, BV, etc.)
|
|
|
Inspection
|
Construction: Roofing, wall cladding, garage doors, rainwater systems; Appliances: Appliance housings, inner panels; General: Storage containers, electrical cabinets, HVAC ducts, agricultural buildings, automotive parts, office furniture, industrial shelving, solar panel backing.
|
|
Application
|
Usage/Application
|
Slitting, shearing, bending/forming
|
|
|
Processing Service
|
Slitting, Cutting, Profiling, Blanking
|
| riod, the more using time.6.paint your logo for free |
FEATURES OF CORRUGATED SHEETS:
Corrugated sheets are wider in length, so there are fewer joints. This results in less wastage, less overlap, less chance of leaks, and lower labour costs
* Strength: Sheets are stronger and also prevent fine cracks around bolts
* Aesthetics: Smooth surface with even gloss
* IS 277 Compliant: Each sheet undergoes rigorous quality testing to ensure superior quality
* Weatherproof: Sheets withstand all kinds of weather, be it heavy rain, salty sea breeze, humid coastal areas, cold snow, or hot weather.
* Excellent Corrosion Protection: Sheets are made with anti-corrosion technology to prevent corrosion and extend the life of your roof.
* Wide Range of Products: Available in multiple thicknesses (0.09mm to 0.80mm) and multiple width options (720mm to 1220mm) as required. The wide width range allows for minimum overlap, which reduces leak points and saves on fixing fittings, allowing for better planning.
MANUFACTURING PROCESS:
1. HR Coil
2. HR Slitter
3. Pickling Line
4. Cold Rolling Mill
5. CR Trimming line
6. Continuous Galvanising line
7. Cut to Cut-to-length machine & Galvalume Coils
8. Corrugation Machine
9. Corrugated Sheets
