| مادة: | فُولاَذ | طلب: | القوالب والقوالب ، لوحة السفينة ، لوحة الغلاية ، لوحة الحاوية ، لوحة الحافة |
|---|---|---|---|
| تقنية: | المدرفلة على البارد | استخدام خاص: | أدوات القطع ، أدوات القياس ، قواطع من الصلب العادي ، ألواح فولاذية عالية القوة ، فولاذ مقاوم للتآكل |
| الحجم الطبيعي: | 665/800/840/900/1050 | سماكة: | 0.12-1.2 ملم |
| إبراز: | corrugated steel roofing sheet,metal profile roof sheet,Az120 roofing sheet with warranty,metal profile roof sheet,Az120 roofing sheet with warranty |
||

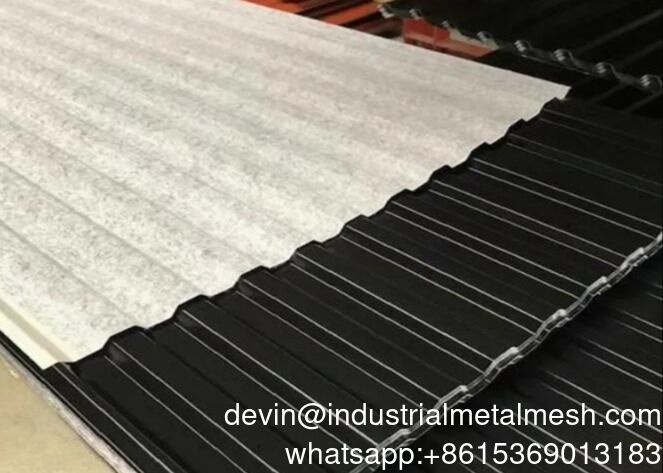

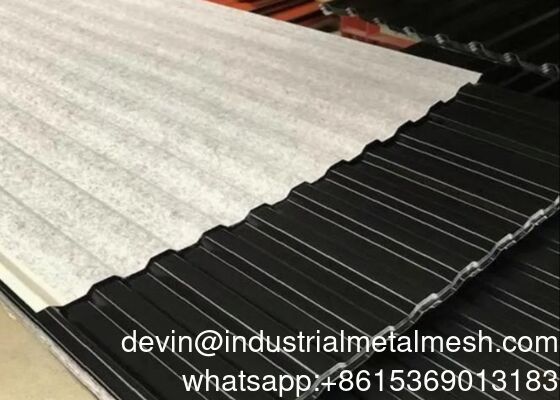

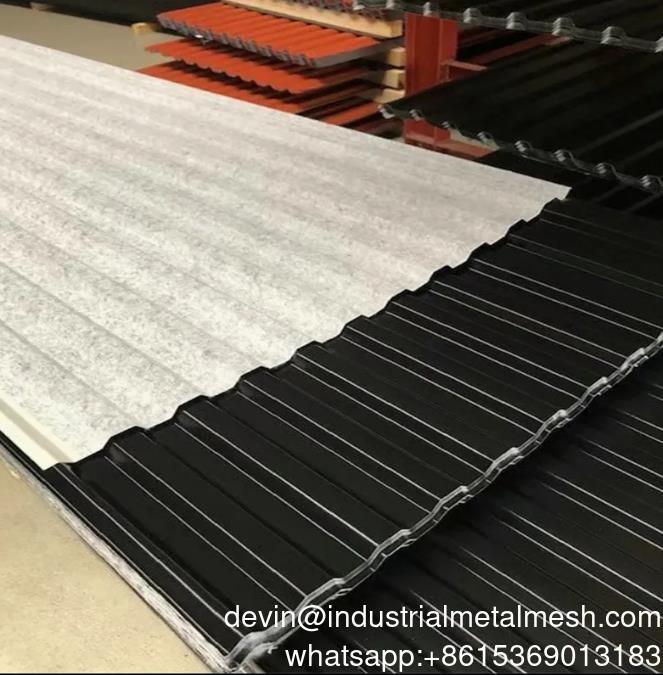

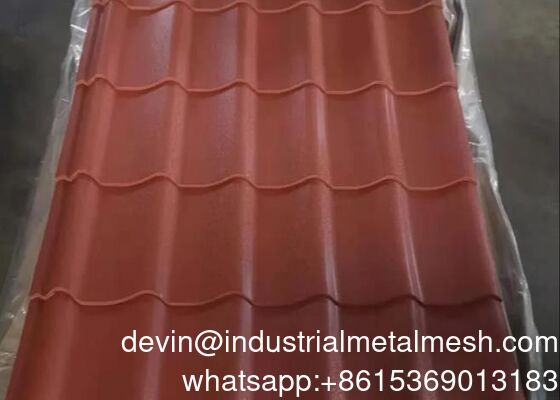

Az120 Metal Corrugated Profile Steel Roof/Roofing Sheet
GALVANISED CORRUGATED STEEL SHEETRoofing Sheet is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to insulate it from the elements. Most of the
corrugated roofing and siding products seen today and for many years past are made with a galvanized finish. It is most commonly used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing.
| Thickness | 0.12mm-2.0mm | ||||
| Width | 660~1100mm | ||||
| Length | 1000-11800mm | ||||
| Grade | DX51D+Z DX52D+Z DX53D+Z DX54D+Z DX56D+Z DX57D+Z |
CS A CS B CS C FS A FS B |
SGCC SGCD |
SGC340 SGC400 SGC440 SGC490 SGC510 |
S220GD+Z S250GD+Z S280GD+Z S320GD+Z S350GD+Z S550GD+Z |
| Zn Coating | Z30-Z275 | ||||
| Color | According to RAL code | ||||
| Coating Types | PE, SMP, JD, HDP, PVDF | ||||
| Coating | Top Paint: 10~35 micron | ||||
| Back Paint: 5~12micron | |||||
| Type of coating process | Front: Double Coated & Double Drying | ||||
| Back: Double Coated & Double Drying, Single Coated & Double Drying |
|||||
| Finish | High light, Glossy, Matte | ||||
| Packing | Standard export package (Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons) | ||||
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings | ||||
| Advantages | 1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Our products are recyclable materials 5.The less construction period, the more using time.6.paint your logo for free |
||||
FEATURES OF CORRUGATED SHEETS:
Corrugated sheets are wider in length, so there are fewer joints. This results in less wastage, less overlap, less chance of leaks, and lower labour costs
* Strength: Sheets are stronger and also prevent fine cracks around bolts
* Aesthetics: Smooth surface with even gloss
* IS 277 Compliant: Each sheet undergoes rigorous quality testing to ensure superior quality
* Weatherproof: Sheets withstand all kinds of weather, be it heavy rain, salty sea breeze, humid coastal areas, cold snow, or hot weather.
* Excellent Corrosion Protection: Sheets are made with anti-corrosion technology to prevent corrosion and extend the life of your roof.
* Wide Range of Products: Available in multiple thicknesses (0.09mm to 0.80mm) and multiple width options (720mm to 1220mm) as required. The wide width range allows for minimum overlap, which reduces leak points and saves on fixing fittings, allowing for better planning.
MANUFACTURING PROCESS:
1. HR Coil
2. HR Slitter
3. Pickling Line
4. Cold Rolling Mill
5. CR Trimming line
6. Continuous Galvanising line
7. Cut to Cut-to-length machine & Galvalume Coils
8. Corrugation Machine
9. Corrugated Sheets
