| مادة: | الفولاذ المقاوم للصدأ | سماكة: | 1.0mm |
|---|---|---|---|
| إبراز: | stainless steel conveyor belt,flat flex wire mesh,metal wire mesh belt,flat flex wire mesh,metal wire mesh belt |
||

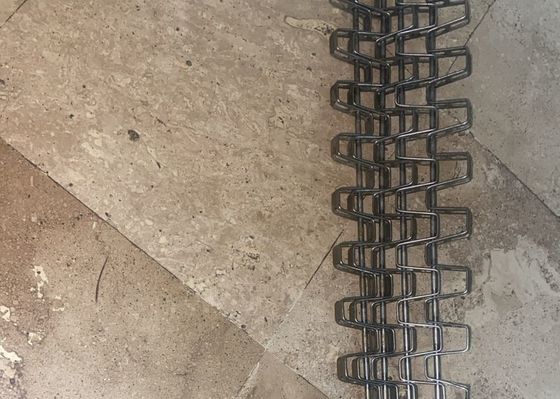

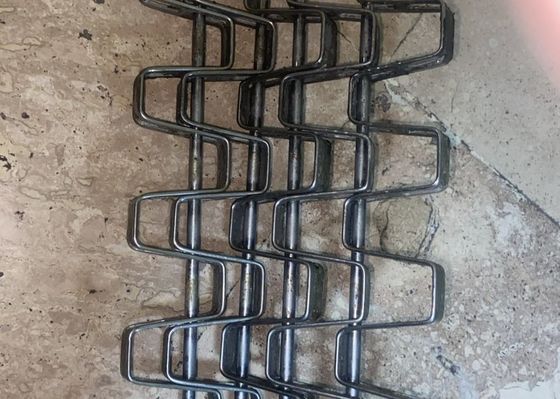

Stainless Steel Flat Flex Wire Mesh Conveyor Belt
Flat wire conveyor belt, constructed of cross rods and flat metal strips, are made out of thousands of metal "U" shapes that are riveted together. They are best for situations that require a solid, flat surface that promotes maximum air circulation. Excellent fluid drainage as well as ease of cleaning. Meanwhile, they are easy to maintain just replacing the section that is damaged or worn down. They are used in some of the following applications: food processing, canning, baking, freezing, agricultural applications, as well as Parts washing, drying, cleaning, painting, transferring; also used as matting and drag mats.
| Styles | Types | Mesh size | Belt width | Cross rod diameter | Flat strip (Height × Thickness) | Tension (max) | Approx. weight |
| Standard duty & clinched edge | CG-C1 | 1" × 1" | 4.5" to 240" | 0.105" | 3/8" × .046" | 480 lbs./ft | 1.85 lbs./square feet |
| CG-C2 | ½" × 1" | 4.125" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.20 lbs./square feet | |
| CG-C3 | ½" × 1" | 4.125" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.50 lbs./square feet | |
| CG-C4 | ¾" × 1" | 4.5" to 240" | 0.12" | 3/8" × .046" | 550 lbs./ft | 2.00 lbs./square feet | |
| Standard duty & welded edge | CG-W1 | 1" × 1" | 3" to 240" | 0.105" | 3/8" × .046" | 480 lbs./ft | 1.85 lbs./square feet |
| CG-W2 | ½" × 1" | 3.25" to 240" | 0.105" | 3/8" × .046" | 660 lbs./ft | 2.20 lbs./square feet | |
| CG-W3 | ½" × ½" | 3" to 240" | 0.105" | 3/8" × .046" | 750 lbs./ft | 3.25 lbs./square feet | |
| CG-W4 | ½" × 1" | 3.25" to 240" | 0.12" | 3/8" × .046" | 660 lbs./ft | 2.50 lbs./square feet | |
| Heavy duty & clinched edge | CG-C1 | 1" × 1" | 10" to 192" | 0.192" | 1/2" × .062" | 1350 lbs./ft | 3.55 lbs./square feet |
| CG-C2 | ½" × 1" | 10" to 192" | 0.192" | 1/2" × .062" | 1750 lbs./ft | 3.55 lbs./square feet |
