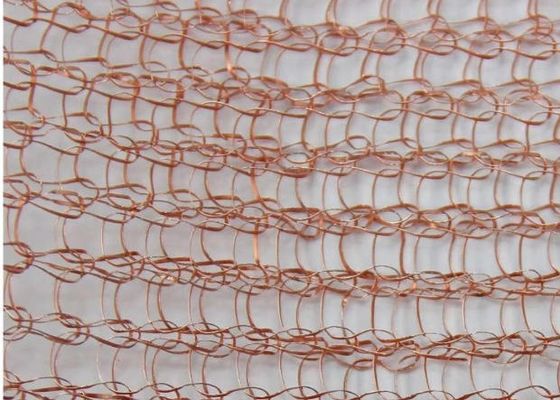

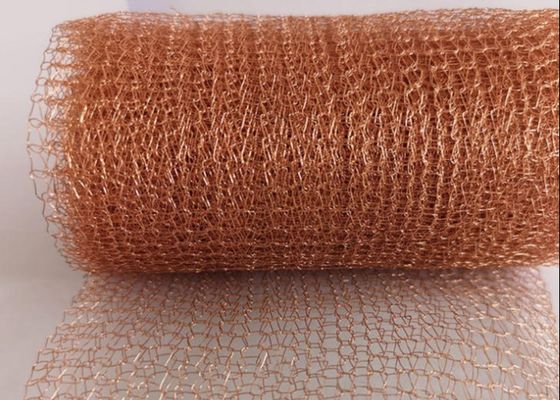

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

شهادة
الصين Hebei Qijie Wire Mesh MFG Co., Ltd الشهادات
الصين Hebei Qijie Wire Mesh MFG Co., Ltd الشهادات
زبون مراجعة
نعم ، لقد تلقينا شبكة التعزيز ، ونحن سعداء للغاية بالجودة. شكرا جزيلا! كريس

—— كريس جونسون

لقد تم طلب مسحوق المغلفة T 316 يطير شبكة الشاشة من كيجي؛ على عكس الآخرين، فإنها لا قطع أوامر ودائما توفير نوعية المواد بالنسبة لي.

—— مايكل الابن فينيدا

كان لي تجربة شراء سيئة للغاية مع المورد السابق، لأنها دائما تأجيل وقت الشحن. إلى بلدي الإثارة، كيجي دائما في الوقت المحدد.

—— سوزان ميلر

منتجك

—— جاتوبورن تاي نجوج

ابن دردش الآن

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

Premium Copper Wire Mesh Double Round Knitted Wire Mesh

صورة كبيرة :  Premium Copper Wire Mesh Double Round Knitted Wire Mesh

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Qijie
إصدار الشهادات: copper wire mesh
رقم الموديل: شبكة الأسلاك النحاسية
شروط الدفع والشحن:
الحد الأدنى لكمية: 100pcs
الأسعار: Discuss
تفاصيل التغليف: كرتون ورق
وقت التسليم: 15-18 يوم
شروط الدفع: L/C ، T/T.
القدرة على العرض: 1500 قطعة
مفصلة وصف المنتج
مادة: سلك النحاس قطر الأسلاك: 0.16mm
عرض: 60 مم
إبراز:

copper wire mesh double round,knitted wire mesh premium copper,metal wire mesh with warranty

,

knitted wire mesh premium copper

,

metal wire mesh with warranty

Premium Copper Wire Mesh Double Round Knitted Wire Mesh



Stainless steel knitted wire mesh for demister pad Introduction:
gas-liguid Separator, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L,;other galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.



Premium Copper Wire Mesh Double Round Knitted Wire Mesh 0





Stainless steel knitted wire mesh for demister pad Specifications
AVAILABLE MATERIALS / ALLOY
STAINLESS STEEL: 304, 304L, 316L 430, INCONEL, MONEL,COPPER, BRASS,ALUMINUM,MILD STEEL (PLAIN & GALVANIZED)
WIRE DIAMETER
0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
ROLL WIDTHS
40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
HOLE SIZES
4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Recommendations:
Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.

Premium Copper Wire Mesh Double Round Knitted Wire Mesh 1



Stainless steel knitted wire mesh Application:

It mainly used for processing demister, for separating gases inside the droplet, also be extrusion molding, for manufacturing a filtration device, in the automotive industry, the electronics industry has also been widely used.
