| وظيفة: | آلة الحياكة الدائرية للشبك السلكي | سلك: | 0.17 ملم |
|---|---|---|---|
| عرض: | 5 سم | ||
| إبراز: | semi automated wire mesh machine,electromagnetic shielding knitting machine,circular knitting wire mesh machine,electromagnetic shielding knitting machine,circular knitting wire mesh machine |
||

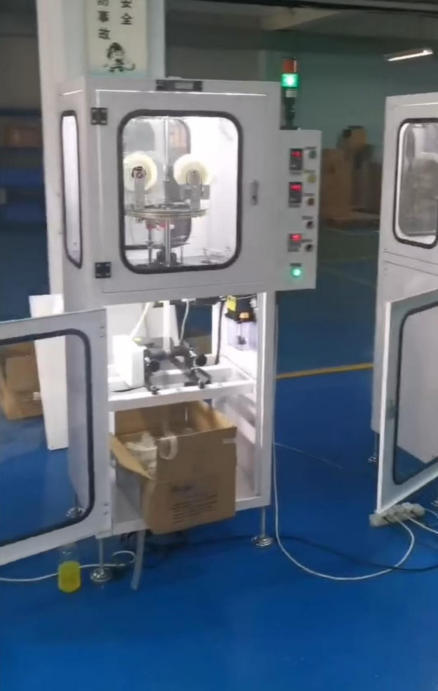

Semi Automated Electromagnetic Shielding Wire Mesh Circular Knitting Machine
| Model | YC-100 |
| Needle cylinder diameter | 0.5-34 inches |
| Needles | 6-302 needles |
| Needle cylinder speed | 1500r/min |
| Main motor | 0.37KW-1500kw/220V-240V |
| Curly traction motor power | 60w |
| Main drive motor is controlled by frequency converter | 0-750 r/min |
| Curly traction motor is controlled by frequency converter | 0-75 r/min |
| Machine capacity | 6m/h |
| Machine size | 60*100*110cm |
| Net Weight | 110kg |

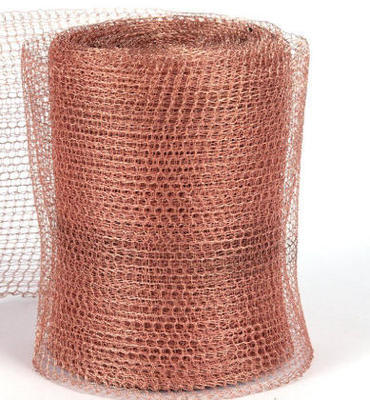

For strict demands on shielding effectiveness and visual transparency in display windows, shielding meshes were developed that display absolutely uniform black coloration and high damping values. An array of wire meshes made of copper or bronze are available for shielding electromagnetic waves in rooms and non-optical systems.
For applications in the field of shielding technology, we produce special meshes for optical applications, wire mesh for installation in composite materials or other material systems, as well as metal meshes for use in the construction industry.
Brass wire: copper 65%,zinc35%
Purple copper wire: copper 99.8%
Phosphorus copper wire :copper 85%-90%,tin 5%-15%
| Product Features |
| All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail. |
|
Materials are available intin-plated phosphor bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/ Brass), Monel, and aluminum(Al). |
| Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity. |
| Selection shape |
| Solid Round Type |
| Solid Rectangular Type |
| Hollow Round Type |
| Solid Round with Fin Type |
|
Hollow Round with Fin Type |
| Mesh/inch | Wire dia(mm/inch) | Aperture(mm) | |
|
Stainless steel wire mesh |
100 | 0.089/0.0035 | 0.17 |
| 110 | 0.1060/0.0040 | 0.1295 | |
| 120 | 0.0904/0.0037 | 0.1168 | |
| 150 | 0.0660/0.0026 | 0.1041 | |
| 160 | 0.0635/0.0025 | 0.0965 | |
| 180 | 0.0584/0.0023 | 0.0838 | |
| 200 | 0.0533/0.0021 | 0.737 |
Production range:
Width: Standard 1M, Special requirement is accepted.
Length:30M/roll
Size:Standard 60/100/150 mesh/inch
Faraday cage shielding stainless steel wire mesh Product Description
• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc
• Weave: plain, twill, dutch
• Mesh: 1-2800 mesh
• Application: EMI/RFI shielding, Faraday cages, RF window,
• Specification list for faraday cage shielding stainless steel wire mesh
