| مادة: | فُولاَذ | طلب: | لوحة مرساة للمنحدر |
|---|---|---|---|
| تقنية: | مثقب | ||
| إبراز: | epoxy coated full thread bar,32mm psb930 threaded bar,metal wire mesh threaded rod,32mm psb930 threaded bar,metal wire mesh threaded rod |
||

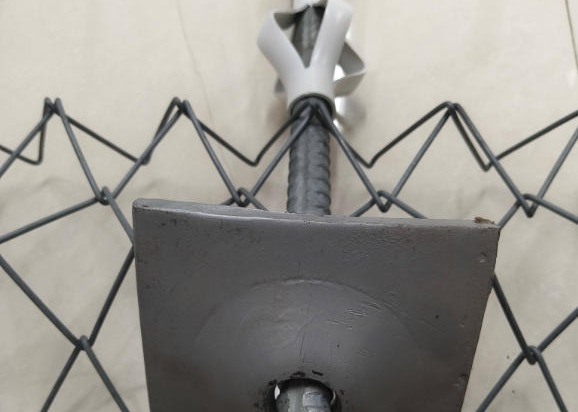

epoxy coated Threadbar Anchor System
1 Specification:
Threadbars, which ensure ease of coupling and stressing. The wide range of capacities (up to 4500 kN) enable threadbar anchors to be used for many applications.
Typical section lengths range from 6 to 12 meters. Where multiple short sections are required, the Anchor System may be more suitable.
| Steel Grade | Yield Strength ReL(RP0.2) MPa | Tensile Strength Rm, MPa | Elongation at failure A/% | Uniform Elongation Agt/% | Strssel Relaxation | |
| Original Stress | Relaxation Rate Afteer 1000h r/% | |||||
| PSB785 | ≥785 | ≥980 | ≥7 | ≥3.5 | 0.8R | ≤3 |
| PSB830 | ≥830 | ≥1030 | ≥6 | |||
| PSB930 | ≥930 | ≥1080 | ≥6 | |||
| PSB1080 | ≥1080 | ≥1230 | ≥6 | |||
| PSB500 | ≥500 | ≥≥630 | ≥10 | ≥2.5 | ||
1)Quickly installed, easily grouted
Rock bolt is in many ways a typical combination mechanical bolt, installed as a temporary rock support and later grouted to become permanent. But there are important differences. It’s quick and easy to install, simple to grout even with varying consistency and the polypropylene sleeve seals the bolt against corrosion.
Bearing plates with angle compensation, different finishes, architectural features.
Borehole spacers : lantern or skid
Tubes for borehole grouting (bottom up)
Coupler forks for suspending sections within the borehole
Application
geotechnical, soil nailling,rock bolts,ground anchors,form work,reinforcement,post-tension system,bridge ,micro piles,mining and tunneling ect.
