تفاصيل المنتج:
شروط الدفع والشحن:
|
| تقنية: | منسوج | مادة: | أسلاك الفولاذ المقاوم للصدأ ، 316304 |
|---|---|---|---|
| نمط نسج: | نسج عادي / نسيج قطني طويل | اسم المنتج: | مربع منسوج 4 × 4 دقيق 100 ميكرون شبكة أسلاك الفولاذ المقاوم للصدأ |
| قطر السلك: | متطلبات | عرض: | عادة 1 مليون |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | custom stainless steel woven wire mesh,long lifespan wire mesh for paper mills,stainless steel mesh with warranty |
||

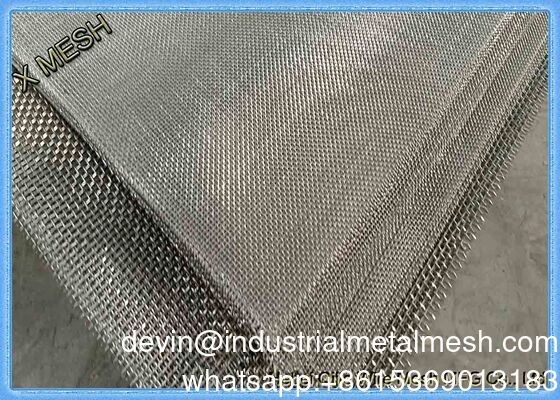

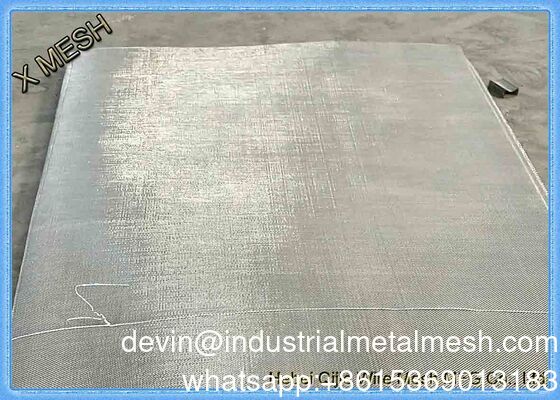

Long Lifespan Custom Stainless-Steel Woven Wire Mesh for Paper Mills
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.
Types of weave: Plain Weave, Twill Weave or Dutch Weave
Mesh count: 1-635 mesh
Diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30m in metric, customization available
Packing: Bubble film, kraft, plastic cloth, wooden case
Use: Filters, sieve, chemical industry, mine industry, paper-making, etc.
Delivery Time: 5 days for stock material
|
Table: Specification of Plain Weave Mesh
|
||||||
|
Model
|
Mesh Count
|
Wire Diameter
|
Mesh Opening
|
Open Area
|
||
|
-
|
(Warp × Weft)
|
Inch
|
mm
|
Inch
|
mm
|
%
|
|
HJ-0185
|
1x1
|
0.0799
|
2.030
|
0.9200
|
23.37
|
85
|
|
HJ-0276
|
2x2
|
0.0629
|
1.600
|
0.4370
|
11.1
|
76
|
|
HJ-0370
|
3x3
|
0.0539
|
1.370
|
0.2791
|
7.09
|
70
|
|
HJ-0456
|
4x4
|
0.0629
|
1.600
|
0.1870
|
4.75
|
56
|
|
HJ-0563
|
5x5
|
0.0409
|
1.040
|
0.1590
|
4.04
|
63
|
|
HJ-0662
|
6x6
|
0.0350
|
0.890
|
0.1318
|
3.35
|
62
|
|
HJ-0860
|
8x8
|
0.0279
|
0.710
|
0.0968
|
2.46
|
60
|
|
HJ-1056
|
10x10
|
0.0251
|
0.640
|
0.0751
|
1.91
|
56
|
|
HJ-1258
|
12x12
|
0.0200
|
0.508
|
0.0629
|
1.60
|
58
|
|
HJ-1446
|
14x14
|
0.0229
|
0.584
|
0.0480
|
1.22
|
46
|
|
HJ-1651
|
16x16
|
0.0179
|
0.457
|
0.0444
|
1.13
|
51
|
|
HJ-1848
|
18x18
|
0.0170
|
0.432
|
0.0385
|
0.98
|
48
|
|
HJ-2046
|
20x20
|
0.0159
|
0.406
|
0.0338
|
0.86
|
46
|
|
HJ-2444
|
24x24
|
0.0140
|
0.356
|
0.0275
|
0.70
|
44
|
|
HJ-3053
|
30x30
|
0.0090
|
0.229
|
0.0244
|
0.62
|
53
|
|
HJ-4036
|
40x40
|
0.0100
|
0.254
|
0.0149
|
0.38
|
36
|
|
HJ-5037
|
50x50
|
0.0079
|
0.203
|
0.0122
|
0.31
|
37
|
|
HJ-6034
|
60x60
|
0.0070
|
0.178
|
0.0098
|
0.25
|
34
|
|
HJ-8032
|
80x80
|
0.0055
|
0.140
|
0.0070
|
0.18
|
32
|
|
HJ-10037
|
100x100
|
0.0039
|
0.100
|
0.0060
|
0.154
|
37
|
|
HJ-12033
|
120x120
|
0.0035
|
0.090
|
0.0047
|
0.121
|
33
|
|
HJ-15042
|
150x150
|
0.0024
|
0.060
|
0.0042
|
0.109
|
42
|
|
HJ-16546
|
165x165
|
0.0019
|
0.050
|
0.0040
|
0.104
|
46
|
|
HJ-18042
|
180x180
|
0.0019
|
0.050
|
0.0036
|
0.0911
|
42
|
|
HJ-20034
|
200x200
|
0.0021
|
0.053
|
0.0029
|
0.0740
|
34
|
|
HJ-25037
|
250x250
|
0.0015
|
0.040
|
0.0024
|
0.0616
|
37
|
|
HJ-30033
|
300x300
|
0.0014
|
0.036
|
0.0019
|
0.0487
|
33
|
|
HJ-32531
|
325x325
|
0.0013
|
0.035
|
0.0017
|
0.0432
|
31
|
|
HJ-35034
|
350x350
|
0.0011
|
0.030
|
0.00167
|
0.0426
|
34
|
|
HJ-40028
|
400x400
|
0.0011
|
0.030
|
0.00131
|
0.0335
|
28
|
|
HJ-50026
|
500x500
|
0.00098
|
0.025
|
0.00101
|
0.0258
|
26
|
|
HJ-63525
|
635x635
|
0.00078
|
0.020
|
0.00078
|
0.0200
|
25
|
|
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.
|
||||||
Other things you need to know about 316 stainless steel mesh
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
2. Deep processing services
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
3. Detail application example
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
