تفاصيل المنتج:
شروط الدفع والشحن:
|
| تقنية: | منسوج | مادة: | أسلاك الفولاذ المقاوم للصدأ ، 316304 |
|---|---|---|---|
| نمط نسج: | نسج عادي / نسيج قطني طويل | اسم المنتج: | مربع منسوج 4 × 4 دقيق 100 ميكرون شبكة أسلاك الفولاذ المقاوم للصدأ |
| قطر السلك: | متطلبات | عرض: | عادة 1 مليون |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | stainless steel woven wire mesh,gas liquid separation tower mesh,woven wire mesh with warranty |
||

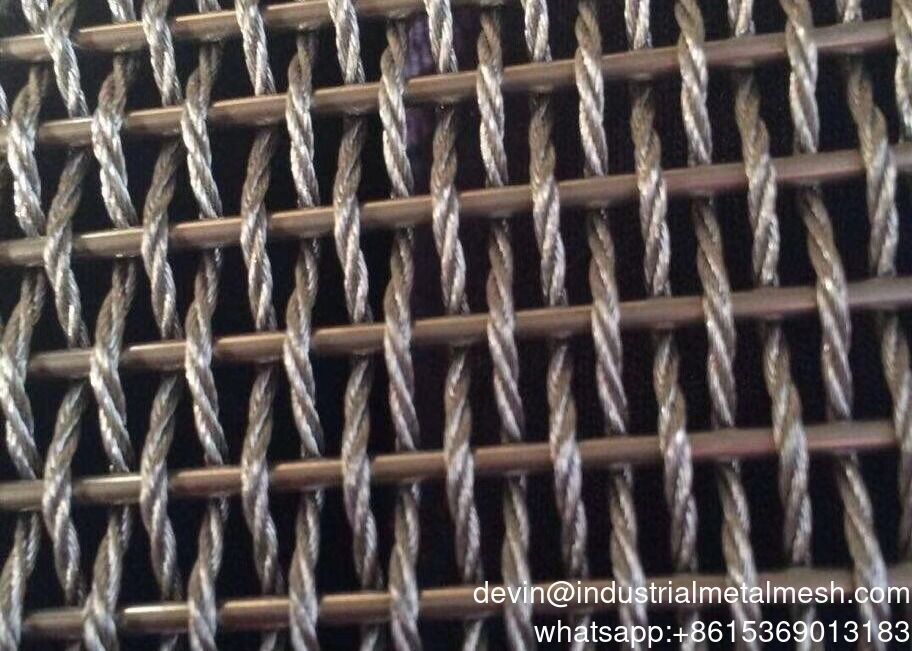

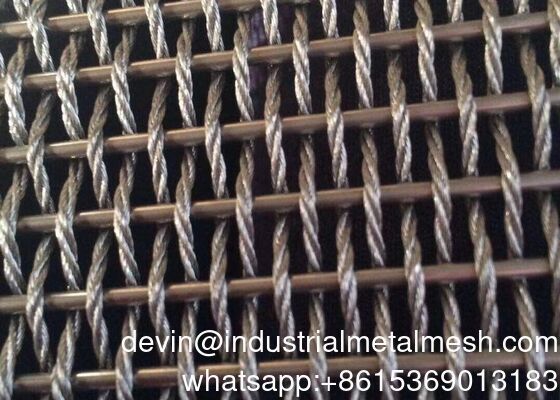

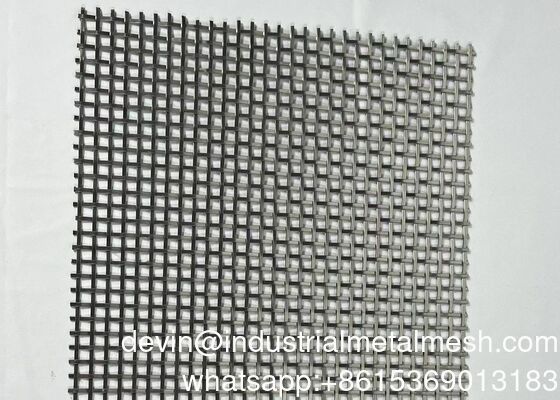

Stainless Steel Woven Wire Mesh for Gas Liquid Separation Tower
Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.It is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing.In recent years, stainless steel net is widely used in many different fields.
Plain Weave Mesh
|
Product Name
|
Stainless Steel Filter Wire Mesh Screen
|
|
Material
|
AISI 302, 304, 316, 316L,etc
|
|
Weave Types
|
Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave
|
|
Mesh Size
|
1-3500 mesh
|
|
Diameter
|
0.02-3mm
|
|
Roll Size
|
30m length X 1m width (length and width can be customized)
|
Other things you need to know about 316 stainless steel mesh
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
2. Deep processing services
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
3. Detail application example
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
اتصل شخص: Mr. Devin Wang
الفاكس: 86-318-7896133
