| مادة: | سلك فولاذي كربوني ، سلك مجلفن | افتتاح شبكة: | 1 "x1" ، 1-1 / 2 "x1-1 / 2" ، 2 "x2" ، 2 "x1" إلخ. |
|---|---|---|---|
| قطر السلك: | 0.4 مم - 6.0 مم | حجم اللوحة: | 1.2 × 2.4 م ، 1.2 × 3.0 م ، 1.8 × 3.6 م إلخ. |
| المعالجة السطحية: | طلاء PVC | ارتفاع آخر: | 1.1 م -3.0 م |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | PVC coated curved wire mesh fence,3D welded fence panels,wholesale curved metal fence |
||

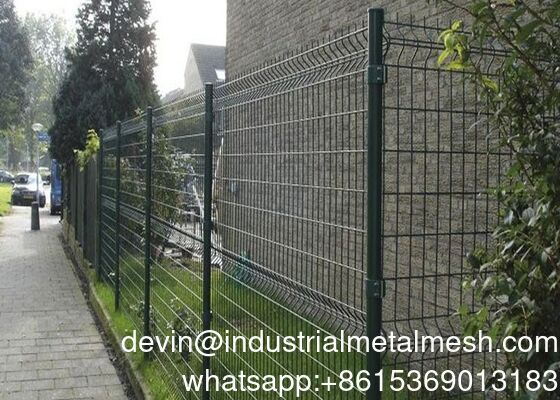

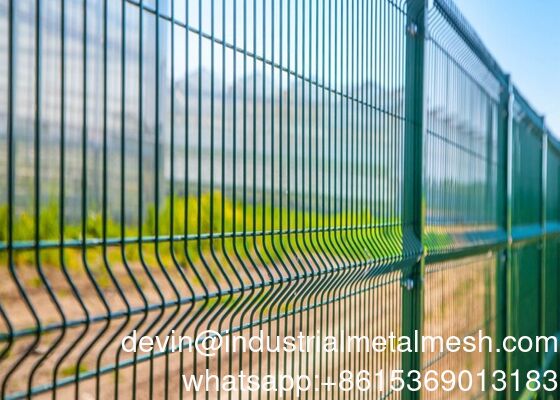

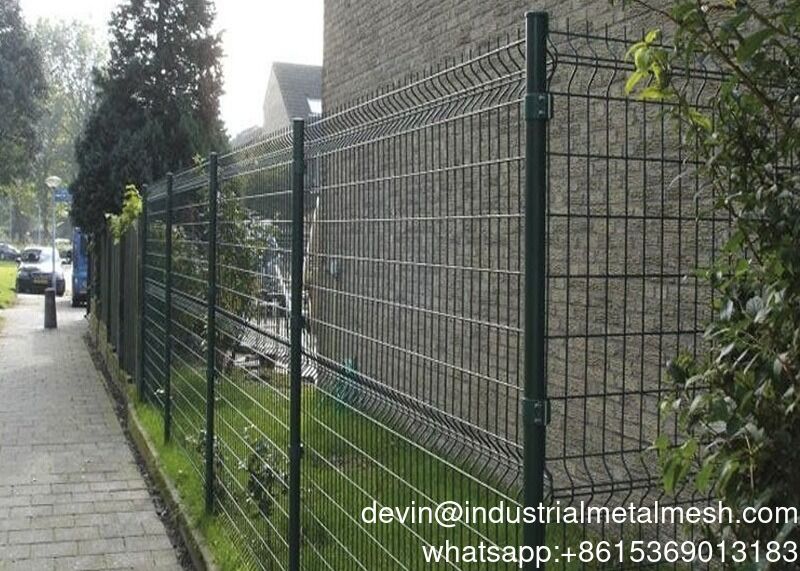

Wholesale High Quality Cheap PVC Coated Curved Welded 3D Wire Mesh Fence Panels
3D fence is also known as curved welded fencing, triangle mesh fence, etc. Triangle V bend fence is pretty light yet durable. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.
1. Product Description:
Type: Garden Fencing
Place of Origin: Hebei, China
Brand Name: Zhuokai wire mesh
Frame Material: Metal
Metal Type: Steel
Surface Treatment Type: Heat Treated
Finishing: PVC Coated,Powder Coated. Electric/Hot dipped galvanized.
Item: weld wire fence
Material: high quality low carbon steel wire/tube
Wire diameter:3-6mm
Mesh Aperture:50*100mm,50*150mm,50*200mm,100*100mm,100*200mm,etc
Height: 1.03m,1.23m,1.53m,1.83m,2.03m,2.23m,etc
Width:From 1000mm to 3000mm
Color:RAL6005,RAL9005,RAL9010,other color can make as your interesting.
Post: Square post:50*50,60*60,80*80,40*80mm,100*100mm;Round post:48,60,75mm,Peach post:70*100mm,etc
Fence post thickness:1.0-5.0mm
2. Product process:
1: Black wire→Welding→Hot dipped galvanized→Powder coated/PVC coated
2: Black wire→Hot dipped galvanized→Welding→Powder coated/PVC coated
3: Black wire→Welding→Electric galvanized→Powder coated/PVC coated
4: Black wire→Electric galvanized→Welding→Powder coated/PVC coated
3. Features:
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.
4. Fence Specifications:
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| Product name | Folding fence | ||||||
| Material | Black wire,electro galvanized wire,hot dipped galvanized wire,stainless steel wire | ||||||
| Wire Thickness | 3.5mm,4mm,5mm(After powder coated) | ||||||
| Height | 0.63m,0.83m,1.03m,1.23m,1.53m,1.73m,2.03m | ||||||
| Length | Can be customized according to your need | ||||||
| Hole Size | 50*50mm,50*100mm,50*150mm,50*200mm,55*200mm | ||||||
| Post | Square,round,peach and so on | ||||||
| Surface | PVC coated,powder coated,hot dipped galvanized | ||||||
| Color | Dark green,grass green,blue,white,yellow | ||||||
| Usage | Private properties and recreational sites Sports facilities, pitches, tennis courts, playgrounds Warehouses, logistics bases Housing estates and parking lots Industrial and commercial buildings Public places |
||||||
