تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | سلك فولاذي كربوني ، سلك مجلفن | افتتاح شبكة: | 1 "x1" ، 1-1 / 2 "x1-1 / 2" ، 2 "x2" ، 2 "x1" إلخ. |
|---|---|---|---|
| قطر السلك: | 0.4 مم - 6.0 مم | حجم اللوحة: | 1.2 × 2.4 م ، 1.2 × 3.0 م ، 1.8 × 3.6 م إلخ. |
| المعالجة السطحية: | طلاء PVC | ارتفاع آخر: | 1.1 م -3.0 م |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | hot dipped bend garden fence,3D curved mesh fence,curved metal garden fence |
||

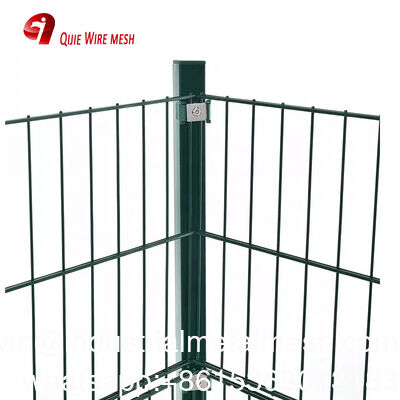

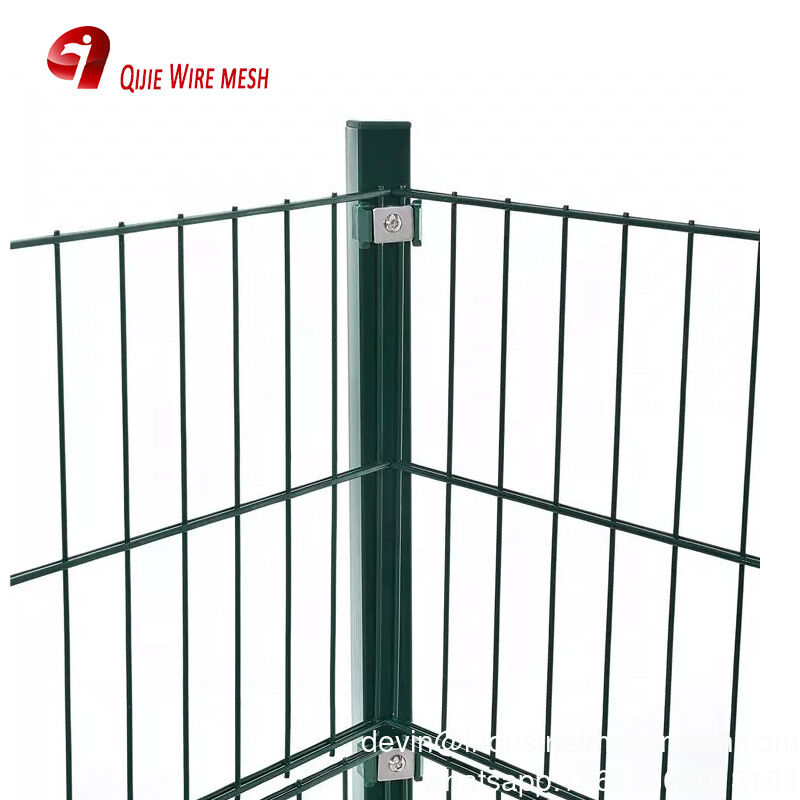

Hot Dipped Bend Triangle Bend Garden Fence for 3D Curved Mesh Fence

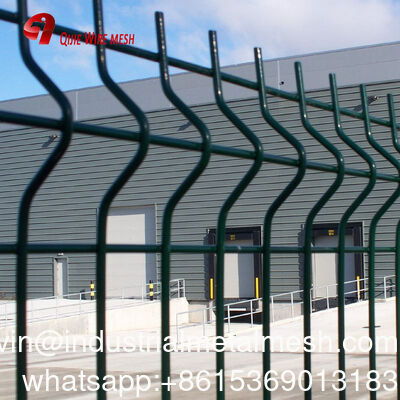

Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.
It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence.
Generally, the number of V-shaped curves varies as the height of welded wire mesh varies.
Application: Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.
| Mesh Size(mm) | Height(mm) | Width(mm) | Wire Dia(mm) | Post Height(mm) | Surface Treatment |
| 76.2*12.7 75*12.5 75*13 |
2100 | 2515/2750/3000 | 2.0-5.0 | 2700 | Galvanized Powder Coated PVC coated |
| 2200 | 2515/2750/3000 | 2800 | |||
| 2400 | 2515/2750/3000 | 3000 | |||
| 2700 | 2200/2300 | 3700 | |||
| 3000 | 2200/2300 | 4000 | |||
| 3600 | 2200/2300 | 4800 | |||
| 4000 | 2200/2300 | 5200 |
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| 3D curved PVC coated galvanized welded iron wire mesh fence panel | |
| material | steel iron wire,galvanized wire |
| surface treatment | PVC coated ,powder coated |
| color | blue,green,black,white,yellow,grey,etc. |
| wire diameter | 4.5mm,5mm,6mm |
| hole size | 50x200mm,75x200mm |
| fence height | 1.5m,1.6m,1.8m,2m,2.1m |
| fence length | 2m,2.5m |
| post | peach type post,square type post |
اتصل شخص: Mr. Devin Wang
الفاكس: 86-318-7896133
