| مادة: | سلك فولاذي كربوني ، سلك مجلفن | افتتاح شبكة: | 1 "x1" ، 1-1 / 2 "x1-1 / 2" ، 2 "x2" ، 2 "x1" إلخ. |
|---|---|---|---|
| قطر السلك: | 0.4 مم - 6.0 مم | حجم اللوحة: | 1.2 × 2.4 م ، 1.2 × 3.0 م ، 1.8 × 3.6 م إلخ. |
| المعالجة السطحية: | طلاء PVC | ارتفاع آخر: | 1.1 م -3.0 م |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتساب: | +8615369013183 |
| إبراز: | powder coated 3D triangle bend fence,3D curved welded wire mesh,curved metal fence with warranty |
||

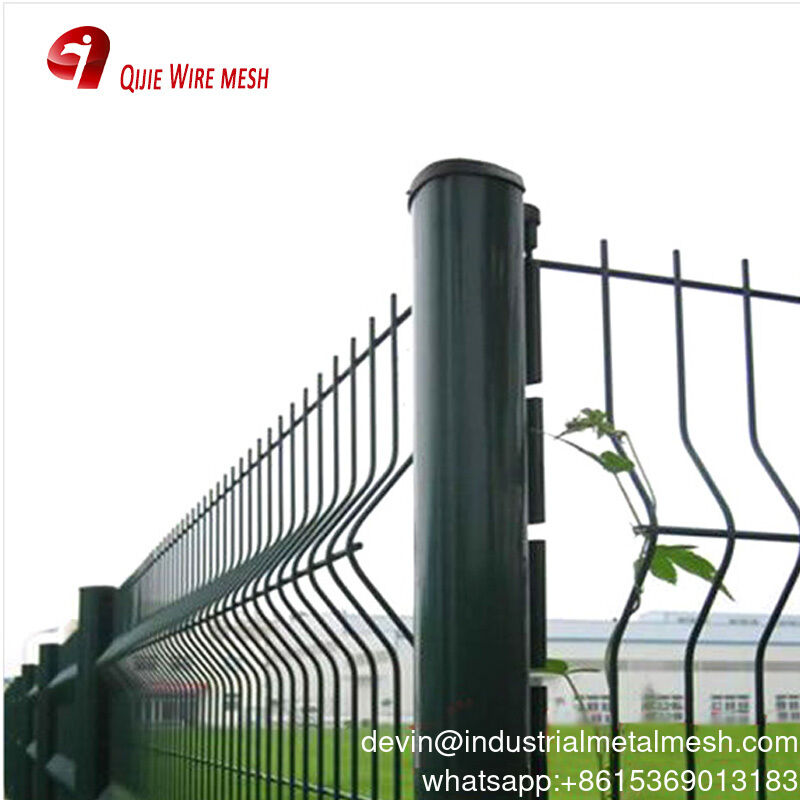

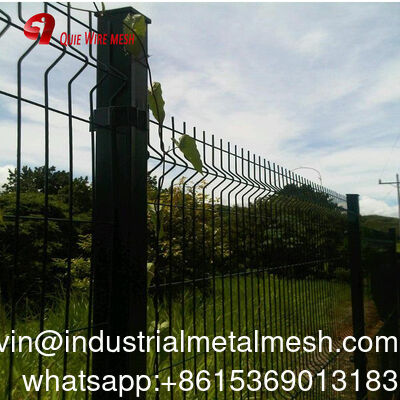

Powder Coated 3D Triangle Bend/3D Curved Welded Wire Mesh Fence
It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal profiles that forms arigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials, then connected with post by suitable clips. Due to its simple structure, easy installation, nice appearance, more and more customers regard welded mesh fence as the preferred common protective fence.
| Mesh Size(mm) | Height(mm) | Width(mm) | Wire Dia(mm) | Post Height(mm) | Surface Treatment |
| 76.2*12.7 75*12.5 75*13 |
2100 | 2515/2750/3000 | 2.0-5.0 | 2700 | Galvanized Powder Coated PVC coated |
| 2200 | 2515/2750/3000 | 2800 | |||
| 2400 | 2515/2750/3000 | 3000 | |||
| 2700 | 2200/2300 | 3700 | |||
| 3000 | 2200/2300 | 4000 | |||
| 3600 | 2200/2300 | 4800 | |||
| 4000 | 2200/2300 | 5200 |
Tips:
You can only tell us fence height and total length you need, we will give you a suitable suggestions.
| 3D curved PVC coated galvanized welded iron wire mesh fence panel | |
| material | steel iron wire,galvanized wire |
| surface treatment | PVC coated ,powder coated |
| color | blue,green,black,white,yellow,grey,etc. |
| wire diameter | 4.5mm,5mm,6mm |
| hole size | 50x200mm,75x200mm |
| fence height | 1.5m,1.6m,1.8m,2m,2.1m |
| fence length | 2m,2.5m |
| post | peach type post,square type post |
