تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | أسلاك الفولاذ الكربوني | افتتاح شبكة: | 12 × 12، 20 × 20، 25 × 25، 12 × 25 ملم |
|---|---|---|---|
| قطر السلك: | 0.4 ملم - 1.5 ملم | عرض اللفة: | 0.4 م، 0.5 م، 0.6 م، 0.8 م، 1.0 م، 1.25 م، 1.5 م، 2.0 م |
| طول اللفة: | 15 م، 30 م، 50 م إلخ | المعالجة السطحية: | المجلفن بالغمس الساخن أو المجلفن الكهربائي |
| رقم الموديل: | س س-01001 | طلب:: | شبكة السياج |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتس اب: | +8615369013183 |
| إبراز: | 3.0mm galvanized welded wire mesh,steel wire mesh fence panel,construction welded wire mesh panel |
||

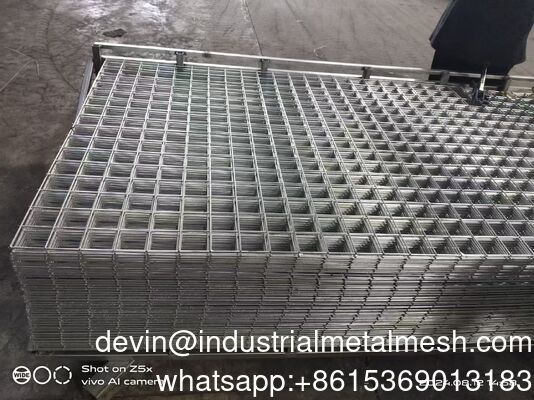

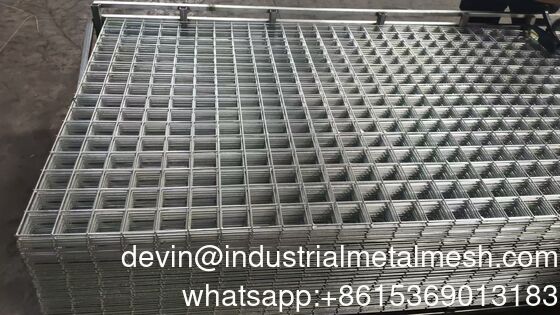

3.0mm Gaw Galvanized Welded Wire Mesh Panel Construction Steel Wire Mesh Panel Fence Panel
welded mesh panel is made of high-quality Q195 low-carbon steel wire, and then cold plating (electroplating), hot dipped, PVC coating and other surface passivation, plasticizing treatment, mesh surface leveling, uniform mesh, welding Strong point, good local machining performance, stability, anti-corrosion, good anti-corrosion grid-like wire mesh products. Galvanized (electro galvanized or hot-dip) is carried out after the welded mesh is formed; the product is made of high-quality galvanized iron wire through precise automatic mechanical welding.
welded mesh panel has the characteristics of firm solder joints, reasonable structure, uniform mesh, flat mesh surface, firm structure, strong integrity, and strong corrosion resistance. It can also be used as a special mesh for floor heating in the construction industry.
Material: Low carbon steel wire, stainless steel wire.
Type:
· Hot dipped galvanizing after / before welding wire mesh panel
· Electric galvanizing after welding wire mesh panel
· PVC coated welded wire mesh
Use: Used in industry, agriculture, building, transportation, mine, field, cultivation, enclosure fence, decoration, machine protection, etc.
Color: Light green, rough blue, black, red, yellow etc.
Packing: Different coil diameters or coil weights are available for customers' choices.
|
Specification
|
||
|
Opening
|
Wire Diameter
|
|
|
Inch
|
metric Unit(mm)
|
|
|
1"x1"
|
25mmx25mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x2"
|
50mmx50mm
|
2.5mm,2.0mm,1.8mm,1.6mm
|
|
2"x3"
|
50mmx70mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
2"x4"
|
50mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm
|
|
2"x6"
|
50mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
2"x8"
|
50mmx200mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
3"x3"
|
75mmx75mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm
|
|
3"x4"
|
75mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm
|
|
4"x4"
|
100mmx100mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
5"x5"
|
125mmx125mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
6"x6"
|
150mmx150mm
|
6.0mm,5.0mm,4.0mm,3.0mm
|
|
Technical Note:
|
||
|
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m
2.Special size available at request |
||
Material: low carbon iron wire, rib wire, deformed bar, stainless steel wire, etc. The biggest deformed bar we can deal with is 12 mm.
The types of welded wire panels:
Welded stainless steel wire mesh panels.
Hot-dip zinc plating welded mesh panels.
Galvanized welded mesh panels.
Low carbon welded mesh panels.
PVC-coated welded wire mesh panels.
Steel Rebar Welded Wire Mesh Panel.
Sizes: Low carbon (black or galvanized) welded wire mesh with wire diameter from 0.8 mm to 1.5 mm, mesh opening 25.4 mm × 12.7 mm, width 800 mm - 1600 mm.
Property: Welded wire mesh panels can enjoy such properties as corrosion resistance, aging resistance, sunshine resistance, and weather resistance. Forms of corrosion resistance include electric galvanizing, hot-dipped galvanizing, PVC spraying, and PVC coating.
Benefits: Welded mesh panels can provide safety where security is needed. And welded wire fence panels are ideal in-fill for welded mine support mesh, machine guards, store partitions, dispatch areas, window guards, perimeter fencing, and similar barrier against unwanted intruders. Welded Mesh also is used where wire mesh and lacing are required to maintain the integrity of tunnels and other large underground excavations.
Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit
Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.
2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.
3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.
4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.
5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.
6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.
9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.
11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.
