316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

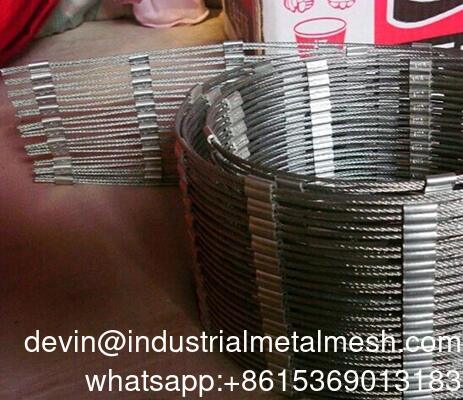

صورة كبيرة :  316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net

تفاصيل المنتج:
مكان المنشأ: خبي، الصين
اسم العلامة التجارية: QIJIE
إصدار الشهادات: CE,SGS,ISO
رقم الموديل: سو-004
شروط الدفع والشحن:
الحد الأدنى لكمية: 10 متر مربع
تفاصيل التغليف: حالة خشبية
وقت التسليم: 10-15 يوم عمل
شروط الدفع: 30٪ مقدما ، التوازن قبل التحميل
القدرة على العرض: 3000 م2/شهر
مفصلة وصف المنتج
مادة: أسلاك الفولاذ المقاوم للصدأ يكتب: شبكة حبل ، نوع الطويق أو النوع المعقود
طلب: حماية شبكة نمط نسج: نسج عادي
تقنية: منسوج رقم الموديل: شبكة حبل أسلاك الفولاذ
خدمة المعالجة: نسج مادة خام: الفولاذ المقاوم للصدأ 304316 ، الأسلاك المجلفنة
مُكَمِّلات: يمكن توفير كل شيء بريد إلكتروني: devin@industrialmetalmesh.com
واتس اب: +8615369013183
إبراز:

316 marine grade safety netting,stainless steel wire rope fence,architectural stainless steel mesh net

,

stainless steel wire rope fence

,

architectural stainless steel mesh net

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net



Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net

Stainless steel cable mesh is made from stainless steel wire rope in various material type like AISI 304 , AISI 316 , AISI 316L etc.


The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19.

The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.



Stainless Steel Wire Rope Mesh Netting, Cable Mesh Net

Also called SS cable mesh) made of high quality stainless steel wire twisted together, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility.
Item No.s
Cable Diameter
Mesh Opening Size(W×H)

inch
mm
inch
mm
BZ-32120F
1/8
3.2
4.75 x 8.23
120 x 207.8
BZ-32102F
1/8
3.2
4 x 6.9
102 x 176.7
BZ-3290F
1/8
3.2
3.55 x 6.15
90 x 156
BZ-3276F
1/8
3.2
3 x5.2
76 x 131.6
BZ-3251F
1/8
3.2
2 x3.46
51 x88.3
BZ-24102F
3/32
2.4
4x6.9
102x176.7
BZ-2490F
3/32
2.4
3.55x6.15
90x 156
BZ-2476F
3/32
2.4
3 x 5.2
76x 131.6
BZ-2460F
3/32
2.4
2.4x 4.16
60x 104
BZ-2451F
3/32
2.4
2x3.46
51 x 88.3
BZ-2076F
5/64
2.0
3 x 5.2
76 x 131.6
BZ-2060F
5/64
2.0
2.4x 4.16
60 x 104
BZ-2051F
5/64
2.0
2 x 3.46
51 x 88.3
BZ-2038F
5/64
2.0
1-1/2 x 2.6
38 x 65.8
BZ-1676F
1/16
1.6
1.2 x2.08
76 x 131.6
BZ-1651F
1/16
1.6
2x 3.46
51 x 88.3
BZ-1638F
1/16
1.6
1-1/2 x 2.6
38 x 65.8
BZ-1630F
1/16
1.6
1.2x2.08
30 x 52
BZ-1625F
1/16
1.6
1 x 1.73
25.4 x 44
BZ-1238F
3/64
1.2
1-1/2x2.6
38 x 65.8
BZ-1230F
3/64
1.2
1.2 x 2.08
30 x 52
BZ-1225F
3/64
1.2
1 x 1.73
25.4 x 44
BZ-1220F
3/64
1.2
4/5 x 1.39
20 x 34.6

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants





Advantages

High-Strength Construction: Durable 304/316 Stainless Steel ensures longevity and reliability.
Exceptional Stability: Multiple junction points and high-strength closed ferrules provide robust support.
Superior Corrosion Resistance: Perfect for heavy-duty plant support in various environments.
Professional Factory: Over 16 years of experience guarantees high-quality and efficient production.
Customizable Packaging: Special packages can be tailored to meet specific customer needs.

316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 1



316 Marine Grade Safety Netting for Architecture Fence Stainless Steel Wire Rope Net 2
