| تقنية: | منسوج | مادة: | أسلاك الفولاذ المقاوم للصدأ ، 316304 |
|---|---|---|---|
| نمط نسج: | نسج عادي / نسيج قطني طويل | اسم المنتج: | مربع منسوج 4 × 4 دقيق 100 ميكرون شبكة أسلاك الفولاذ المقاوم للصدأ |
| قطر السلك: | متطلبات | عرض: | عادة 1 مليون |
| بريد إلكتروني: | devin@industrialmetalmesh.com | واتس اب: | +8615369013183 |
| إبراز: | stainless steel woven wire mesh,durable stainless steel wire mesh,strong woven wire mesh,durable stainless steel wire mesh,strong woven wire mesh |
||

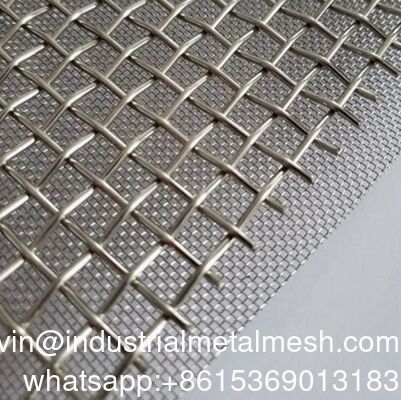

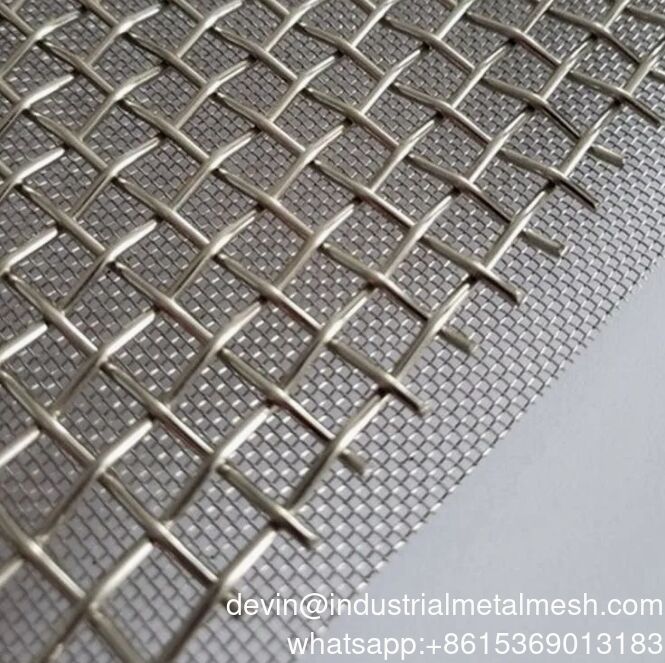

Stainless Steel Woven Wire Mesh Excellent Durability and Strength
stainless steel woven wire mesh detail:
material: SUS304, SUS316L,SUS316L, SUS310
hole size: 3mesh to 500mesh
wire diameter: from 0.03mm to 2.0mm
mesh edge: in open edges, in locked edges

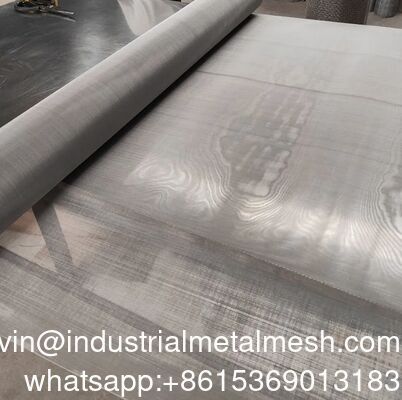

packing: in roll, in sheet, in disc.
used: for making wire mesh basket, for filtering, for decorative wire mesh and so on
Stainless Steel Wire Mesh
|
Table: Specification of Plain Weave Mesh
|
||||||
|
Model
|
Mesh Count
|
Wire Diameter
|
Mesh Opening
|
Open Area
|
||
|
-
|
(Warp × Weft)
|
Inch
|
mm
|
Inch
|
mm
|
%
|
|
HJ-0185
|
1x1
|
0.0799
|
2.030
|
0.9200
|
23.37
|
85
|
|
HJ-0276
|
2x2
|
0.0629
|
1.600
|
0.4370
|
11.1
|
76
|
|
HJ-0370
|
3x3
|
0.0539
|
1.370
|
0.2791
|
7.09
|
70
|
|
HJ-0456
|
4x4
|
0.0629
|
1.600
|
0.1870
|
4.75
|
56
|
|
HJ-0563
|
5x5
|
0.0409
|
1.040
|
0.1590
|
4.04
|
63
|
|
HJ-0662
|
6x6
|
0.0350
|
0.890
|
0.1318
|
3.35
|
62
|
|
HJ-0860
|
8x8
|
0.0279
|
0.710
|
0.0968
|
2.46
|
60
|
|
HJ-1056
|
10x10
|
0.0251
|
0.640
|
0.0751
|
1.91
|
56
|
|
HJ-1258
|
12x12
|
0.0200
|
0.508
|
0.0629
|
1.60
|
58
|
|
HJ-1446
|
14x14
|
0.0229
|
0.584
|
0.0480
|
1.22
|
46
|
|
HJ-1651
|
16x16
|
0.0179
|
0.457
|
0.0444
|
1.13
|
51
|
|
HJ-1848
|
18x18
|
0.0170
|
0.432
|
0.0385
|
0.98
|
48
|
|
HJ-2046
|
20x20
|
0.0159
|
0.406
|
0.0338
|
0.86
|
46
|
|
HJ-2444
|
24x24
|
0.0140
|
0.356
|
0.0275
|
0.70
|
44
|
|
HJ-3053
|
30x30
|
0.0090
|
0.229
|
0.0244
|
0.62
|
53
|
|
HJ-4036
|
40x40
|
0.0100
|
0.254
|
0.0149
|
0.38
|
36
|
|
HJ-5037
|
50x50
|
0.0079
|
0.203
|
0.0122
|
0.31
|
37
|
|
HJ-6034
|
60x60
|
0.0070
|
0.178
|
0.0098
|
0.25
|
34
|
|
HJ-8032
|
80x80
|
0.0055
|
0.140
|
0.0070
|
0.18
|
32
|
|
HJ-10037
|
100x100
|
0.0039
|
0.100
|
0.0060
|
0.154
|
37
|
|
HJ-12033
|
120x120
|
0.0035
|
0.090
|
0.0047
|
0.121
|
33
|
|
HJ-15042
|
150x150
|
0.0024
|
0.060
|
0.0042
|
0.109
|
42
|
|
HJ-16546
|
165x165
|
0.0019
|
0.050
|
0.0040
|
0.104
|
46
|
|
HJ-18042
|
180x180
|
0.0019
|
0.050
|
0.0036
|
0.0911
|
42
|
|
HJ-20034
|
200x200
|
0.0021
|
0.053
|
0.0029
|
0.0740
|
34
|
|
HJ-25037
|
250x250
|
0.0015
|
0.040
|
0.0024
|
0.0616
|
37
|
|
HJ-30033
|
300x300
|
0.0014
|
0.036
|
0.0019
|
0.0487
|
33
|
|
HJ-32531
|
325x325
|
0.0013
|
0.035
|
0.0017
|
0.0432
|
31
|
|
HJ-35034
|
350x350
|
0.0011
|
0.030
|
0.00167
|
0.0426
|
34
|
|
HJ-40028
|
400x400
|
0.0011
|
0.030
|
0.00131
|
0.0335
|
28
|
|
HJ-50026
|
500x500
|
0.00098
|
0.025
|
0.00101
|
0.0258
|
26
|
|
HJ-63525
|
635x635
|
0.00078
|
0.020
|
0.00078
|
0.0200
|
25
|
|
*We have more types of mesh than what is shown on the chart. Please feel free to contact us if you are looking for a certain opening size.
|
||||||
| C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| AISI | UNS | DIN | JIS | GB/T |
|---|---|---|---|---|
| 316L | S31603 | 1.4404 | SUS 316L | 022Cr17Ni12Mo2 |
| Material | SUS 316L stainless steel wire |
| Color | Silver |
| Weave type | Plain dutch weave, Twill dutch weave and crimped |
| Mesh count | 2 mesh – 500x3500mesh |
| Aperture | 0.001mm – 25mm |
| Roll size | 0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc |
| MOQ | 1 square meter |
| Free Sample | A4 size of stock size |
| Package | Inside a paper tube, wrapped with moisture-proof paper, and then put into a box. |
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
