تفاصيل المنتج:
شروط الدفع والشحن:
|
| تقنية: | منسوج | مادة: | أسلاك الفولاذ المقاوم للصدأ ، 316304 |
|---|---|---|---|
| نمط نسج: | نسج عادي / نسيج قطني طويل | اسم المنتج: | مربع منسوج 4 × 4 دقيق 100 ميكرون شبكة أسلاك الفولاذ المقاوم للصدأ |
| قطر السلك: | متطلبات | عرض: | عادة 1 مليون |
| البريد الإلكتروني: | devin@industrialmetalmesh.com | واتس اب: | +8615369013183 |
| إبراز: | heat-resistant stainless steel wire mesh,304 316 stainless steel filter mesh,woven wire mesh screen filter,304 316 stainless steel filter mesh,woven wire mesh screen filter |
||

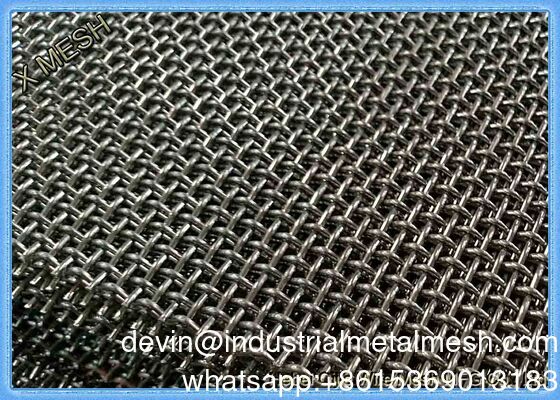

Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh
Stainless steel wire mesh is made of stainless steel wire and then woven together to form a square opening or oblong opening. It is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing. In recent years, stainless steel nets have been widely used in many different fields.
1. Most of our products are customized products, please contact us for the latest factory quotation.
2. Materials, specifications, packaging, pictures, and logos can be customized.
3. Freight charges need to be calculated in detail according to your country and region, the quantity/volume of the goods, and the mode of transportation. Please contact us for more details.
Plain Weave Stainless Steel Woven Wire Mesh
| Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh | ||||||
| Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
-- | Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 | |
| Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request. |
||||||
| Product Name | Stainless Steel Weave Wire Mesh |
| Weaving Process | Plain weave; Twill weave; Five-heddle weave;Plain dutch weave;Twill dutch weave;Reverse Twill dutch weave |
| Wire diameter | Common:0.13mm |
| Mesh Count | Common:80 |
| Width | 1m,1.2m,1.5m, other can be customized |
| Length | 30m,60m,other can be customized |
| Finished product | Regular: roll, can be cut into pieces |
| Packing | Paper tube, moisture-proof bag, wooden box or pallet packing |
| Customization | Our factory can design and produce various types of products according to user needs |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| mesh | wire dia (MM) | Material (AISI) |
| 12 X 64 | 0.58/0.40 | 304 316 |
| 24 X 110 | 0.36/0.25 | 30.316 |
| 14 X88 | 0.50/0.33 | 30.316 |
| 30 X150 | 0.18/0.14 | 30.316 |
| 40 X200 | 0.14/0.11 | 30.316 |
| 50 X250 | 0.10/0.071 | 30.316 |
| 80 X700 | 0.06/0.05 | 30.316 |
| 165 X800 | 0.071/0.040 | 30.316 |
| 165 X1400 | 0.05/0.032 | 30.316 |
| 200 X1800 | 0.05/0.03 | 30.316 |
| 325 X2300 | 0.030/0.025 | 316L |
| 400 X2800 | 0.030/0.02 | 316L |
