تفاصيل المنتج:
شروط الدفع والشحن:
|
| شكل الثقب: | مربع | مقياس الأسلاك: | 2.0-4.0mm |
|---|---|---|---|
| طلب: | شبكة أسلاك البناء | مادة: | سلك الحديد منخفض الكربون ، اسلاك الحديد المجلفن |
| يكتب: | شبكة ملحومة | فتحة: | 1/2" |
| المعالجة السطحية: | المجلفن بالغمس الساخن | عرض: | 0.5-2 م ، 0.5-1.8 م ، 300 مم - 2500 مم ، 0.5 م إلى 2.2 م ، 1.2 م |
| طول: | 5 م | الاستخدام: | تشييد المباني |
| التعبئة: | البليت | اسم المنتج: | شبكة سلكية ملحومة ، شبكة سلكية ملحومة مجلفنة / مغلفة بـ PVC |
| لون: | فضي | ||
| إبراز: | PVC coated welded wire mesh,hot dipped galvanized steel mesh,low carbon iron wire mesh,hot dipped galvanized steel mesh,low carbon iron wire mesh |
||

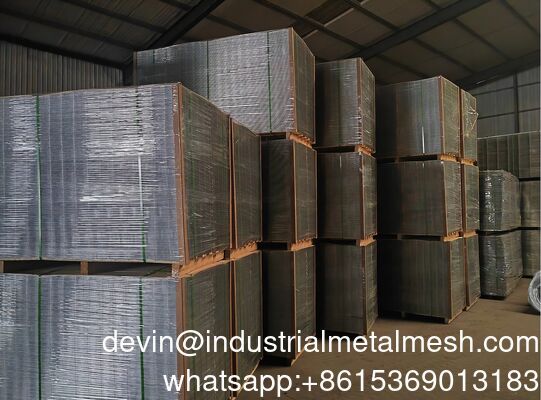

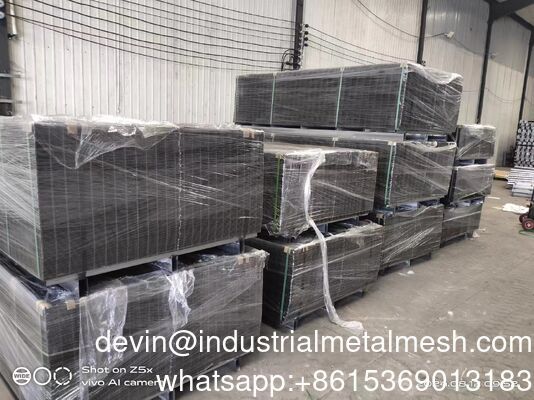

Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot dipped galvanized before weldingHot dipped galvanized after welding Electro galvanzied before weldingElectro galvanzied after welding
|
welded wire mesh rolls
|
||
|
Opening
|
Wire diameter
|
Available Width
|
|
1/4" x 1/4"
|
0.45mm-0.7mm
|
300mm-1830mm
|
|
3/4" x 3/4"
|
0.7mm-2.0mm
|
300mm-1830mm
|
|
3/8" x 3/8"
|
0.7mm-1.1mm
|
300mm-1830mm
|
|
5/8" x 5/8"
|
0.8mm-1.2mm
|
300mm-1830mm
|
|
1/2" x 1/2"
|
0.45mm-1.6 mm
|
300mm-1830mm
|
|
1" x 1"
|
0.7mm-3.0mm
|
300mm-2000mm
|
|
1" x 1/2"
|
0.8mm-1.6mm
|
300mm-1828mm
|
|
1-1/2" x 1-1/2"
|
0.7mm-3.5mm
|
300mm-1828mm
|
|
1" x 2"
|
1.6mm-2.1mm
|
300mm-1828mm
|
|
2" x 2"
|
0.7mm-4.0mm
|
300mm-2500mm
|
|
2" x 3"
|
1.5mm-3.5mm
|
300mm-2000mm
|
|
2" x 4"
|
2.0mm-4.0mm
|
300mm-1828mm
|
|
3" x 3"
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
3" x 4"
|
1.5mm-4.5mm
|
300mm-2000mm
|
|
4" x 4"
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
5" x 5"
|
2.5mm-4.5mm
|
300mm-2500mm
|
|
6" x 6"
|
2.5mm-4.5mm
|
300mm-2500mm
|
| Opening (inch) |
Opening (mm) |
Wire Diameter | Wire Diameter | Panel Length | Panel Width |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
|
|
| 2"x1" | 50mmx25mm | 14#-8# | 2.0mm-4mm | ||
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm | ||
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm | ||
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm | ||
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm | ||
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm | ||
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm | ||
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
|
Galvanized welded mesh panel
|
|||
|
Hole size
|
Wire diameter
|
Panel sizes
|
|
|
In Inch
|
In mm
|
In mm
|
Common sizes :
3' x 6' , 4' x 8' , 5' x 10'
1 x 2m ,2 x 2.9m ,
2 x 4m
Other sizes can be made as request .
|
|
1/2'' x 1/2''
|
12.7 x 12.7mm
|
1.0mm-2.0mm
|
|
|
1'' x 1''
|
25.4 x 25.4mm
|
1.5mm-3.5mm
|
|
|
1'' x 2''
|
25.4 x 50.8mm
|
2.0mm-5.0mm
|
|
|
5/4'' x 5/4''
|
31.8 x 31.8mm
|
2.0mm-4.0mm
|
|
|
3/2'' x 3/2''
|
38.1 x 38.1mm
|
2.0mm-5.0mm
|
|
|
2'' x 2''
|
50.8 x 50.8mm
|
2.0mm-6.0mm
|
|
|
2'' x 3''
|
50.8 x 76.2mm
|
2.0mm-6.0mm
|
|
|
3'' x 3''
|
76.2 x 76.2mm
|
3.0mm-7.0mm
|
|
|
4'' x 4''
|
101.6 x 101.6mm
|
3.0mm-8.0mm
|
|
|
5'' x 5''
|
127 x 127mm
|
4.0mm-9.0mm
|
|
|
6'' x 6''
|
152.4 x 152.4mm
|
4.0mm-10.0mm
|
|
