| مادة: | مادة البولي يوريثين | يستخدم: | مضاد للانسداد |
|---|---|---|---|
| ماركة: | qijie | نموذج: | قضيب فك |
| إبراز: | flexible polyurethane deblinding rods,mining screen mesh rods,polyurethane deblinding rods with warranty,mining screen mesh rods,polyurethane deblinding rods with warranty |
||

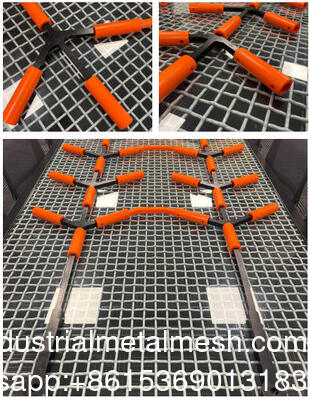

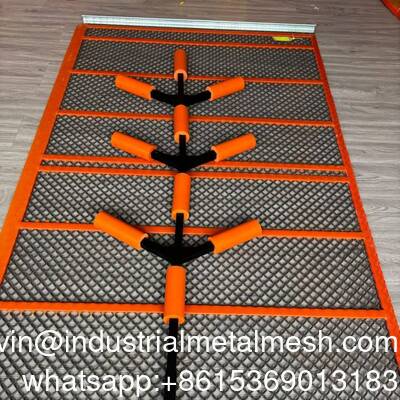

Flexible Polyurethane Deblinding Rods
Anti-Blinding Rods are elastic polyurethane rods that are fixed to the screen and have been developed to further improve the self-cleaning properties of anti-clogging screens. Anti-Blinding Rods use the machine’s vibration to move and bounce on the surface of the mesh that helps to shake off stubborn sticky material from the panels; therefore avoiding particles wedging and blinding the screen.
They can be connected in multiple parts to completely cover the screen area. They trail over the top of your mesh and bounce up and down with the vibration of the screen, as a result knocking off the material that is causing the issues.
Here’s the simple idea:
Rods sit under the screen deck, positioned where plugging happens.
As the machine vibrates, rods “bounce” and apply gentle impact from below.
This movement helps release near-size particles and break sticky coating.
The deck stays more open, so screening runs more consistently over the shift.
Declogging rods don’t replace good screen selection and correct tensioning—but they can be a practical improvement when plugging is the bottleneck.
Helps reduce blinding and pegging
Supports more stable screening performance across a shift
Reduces downtime for manual cleaning and scraping
Easy to retrofit in many deck setups (depending on clearance and supports)
Works as a targeted solution—install rods where plugging is worst
These components fix together with pins and configured to cover part or all of your screenbox. They sit atop individual screens, or alternatively cover the entire area. In addition, different separators widths are available, fixing places vary, as a result this product highly customisable. The table below is designed as a guide only, contact us for more information, our sales staff will be happy to advise you further.
| Screen length | Components |
|---|---|
| Up to 1500 | 1 fixed rod and 2 mobile rods |
| Up to 2000 | 1 fixed rod and 3 mobile rods |
| Up to 2500 | 1 fixed rod and 4 mobile rods |
| Up to 3000 | 1 fixed rod and 5 mobile rods |
| Up to 3500 | 1 fixed rod and 6 mobile rods |
| Up to 4000 | 1 fixed rod and 7 mobile rods |
| Up to 4500 | 1 fixed rod and 8 mobile rods |
| Screen width | Components |
|---|---|
| Up to 1000 | 1 declogging rod |
| 1000 ÷ 1500 | 2 declogging rod |
| 1500 ÷ 2000 | 3 declogging rod |
NOTE – To avoid tangling of separate declogging rods, they are joined using separators according to the number of mobile rods. In addition, we don’t recommend use when screening with metallic meshes with wire diameters smaller than 2.5mm.

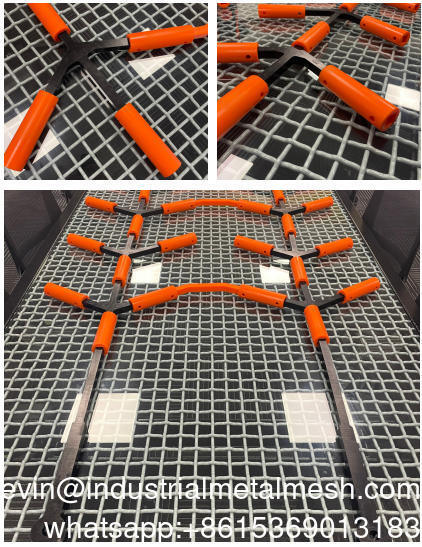

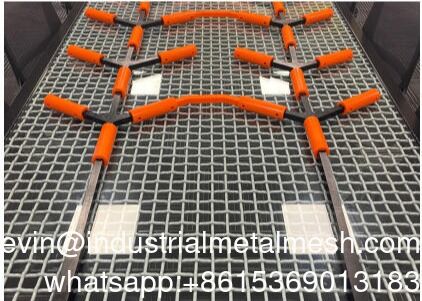

polyurethane declogging rods
polyurethane declogging rods
