تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | أسلاك الفولاذ المقاوم للصدأ | يكتب: | شبكة حبل ، نوع الطويق أو النوع المعقود |
|---|---|---|---|
| طلب: | حماية شبكة | نمط نسج: | نسج عادي |
| تقنية: | المنسوجة | رقم الموديل: | شبكة حبل أسلاك الفولاذ |
| خدمة المعالجة: | نسج | مادة خام: | الفولاذ المقاوم للصدأ 304316 ، الأسلاك المجلفنة |
| مُكَمِّلات: | يمكن توفير كل شيء | بريد إلكتروني: | devin@industrialmetalmesh.com |
| واتس اب: | +8615369013183 | ||
| إبراز: | stainless steel zoo animal mesh,bird aviary wire rope enclosure,stainless steel wire rope mesh,bird aviary wire rope enclosure,stainless steel wire rope mesh |
||

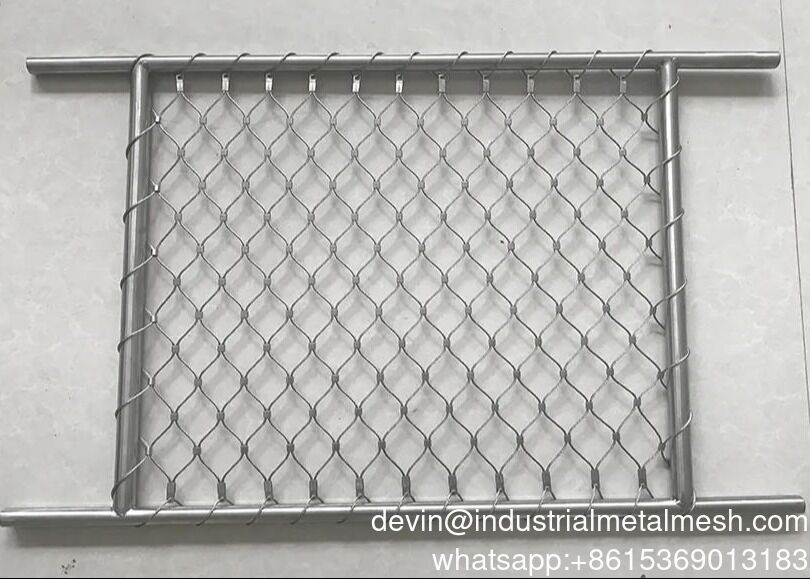

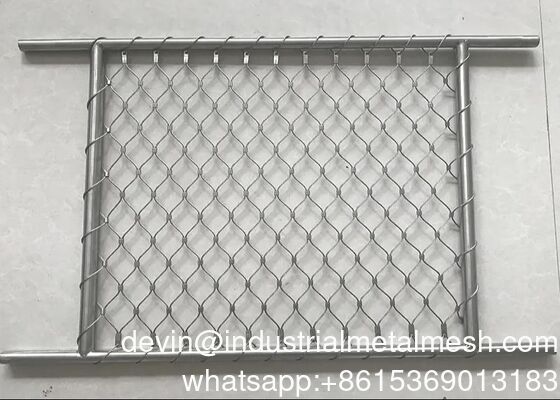

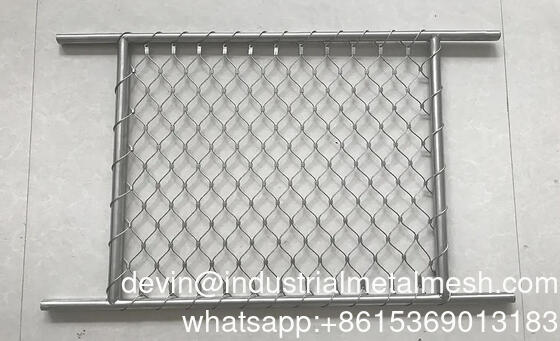

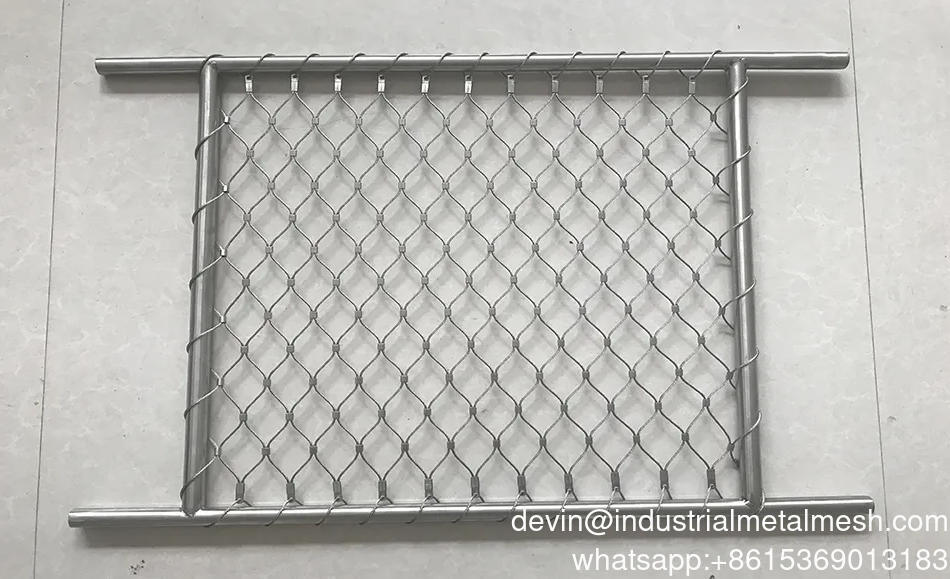

Stainless Steel Zoo Animal Wire Rope Mesh for Birds Aviary Enclosure
|
Product Name
|
Stainless Steel Wire Rope Mesh
|
|
Material
|
Stainless Steel 304, 304L, 316, 316L, etc
|
|
Wire Diameter
|
1-4MM
|
|
Mesh Size
|
20-300 MM
|
|
Structure
|
7*7 or 7*19
|
|
Weaving Types
|
Hand-woven, Open buckle type, Closed buckle type.
|
|
Application
|

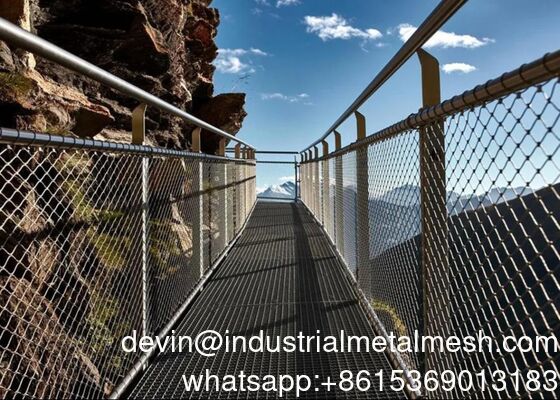

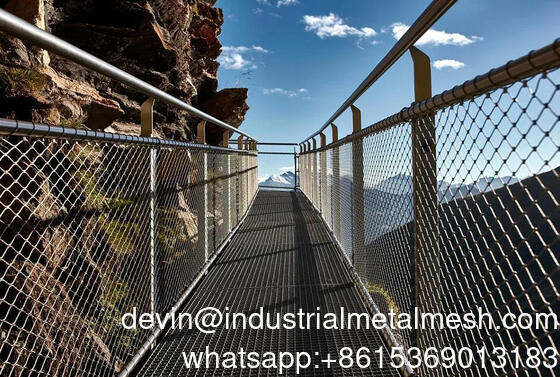

Used in bridge fences, zoos, safari parks, ocean parks, sports, acrobatics, home decoration, architectural decoration and many other fields.
|
|
Packing
|
Carton or wooden box
|
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Application:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. 2.Anti-corrosive, resist the rust, can be repeated use. 3.Resists chewing by rodents and other pests 4.This product can bear the heavy snow and the gale very much. 5.Without toxic material, safety, environmental protection. |
||||||||||||||||
Main Featuers:
1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested - especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.
Feature:
The type of stainless steel rope mesh:
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
