| مادة: | ألومنيوم ، أسلاك الفولاذ المجلفن | اسم المنتجات: | قبضة تبختر صريف |
|---|---|---|---|
| يكتب: | شبكة مثقبة ، حفر أو ختم | تقنية: | مثقب |
| نمط نسج: | مثقوبة ، مثقوبة ، تثقيب | شكل ثقب: | دائري ، ماسي ، إلخ ، زهر البرقوق ، مثمن |
| المعالجة السطحية: | طلاء الرش / طلاء الرش / طلاء الفلوروكربون ، المجلفن بالغمس الساخن ، المجلفن والفلوروكا | لون: | تحتوي جميع شرائح الألوان على الأبيض والأزرق والفضي والذهبي |
| اسم المنتج: | صفائح معدنية مثقبة سداسية ، شبكة الماس قابلة للتوسيع | سماكة: | 0.5-8 مم ، 0.3 مم - 8 مم |
| ميزة: | مقاومة التآكل ، ومظهر جيد ونوعية جيدة ، ودائم ، ومقاومة حمض ، ومضادة للمقاومة | عرض: | 1 م أو 1.22 م ، 1.22 م أو أقل |
| الاستخدام: | إلخ ، الديكور ، فلتر الزيت / الهواء ، الطعام | طول: | 2m أو 2.44m |
| مقاس: | حجم مخصص ، قياسي | شكل: | مربع ، يمكن تقطيعه إلى شكل دائري أو مربع ، شكل دائري ، بيضاوي ، مسدس |
| يقذف: | 1.0mm-100MM ، أو حسب الطلب. | بريد إلكتروني: | devin@industrialmetalmesh.com |
| واتس اب: | +8615369013183 | ||
| إبراز: | diamond safety grip strut grating,high strength stair treads,cheaper price grip strut grating,high strength stair treads,cheaper price grip strut grating |
||

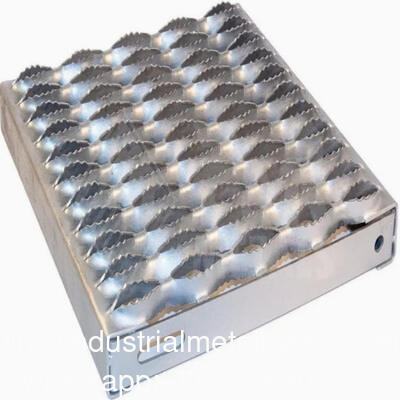

High Strength and Cheaper Price Diamonds Safety Grip Strut Stair Treads Grating
stair tread steel gratings, also called grating steps, are made of low carbon steel or stainless steel. It is one of the most
widely used and popular types of steel gratings. With the features of high strength, high bearing capacity, wear resistance,
resistance to extreme temperature wind and rain, non-slip, anti-corrosion, beautiful and easy to install and remove extend the
lifespan, stair tread steel grating is widely used as different types of steel ladders in the factory, school, park, stadium,
civil and commercial buildings.

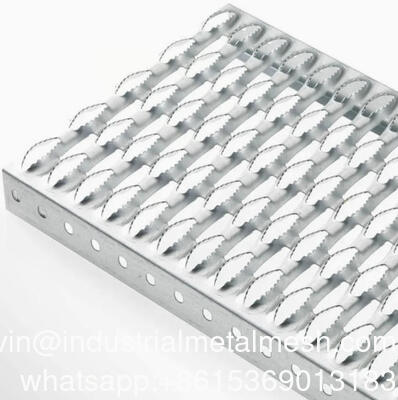

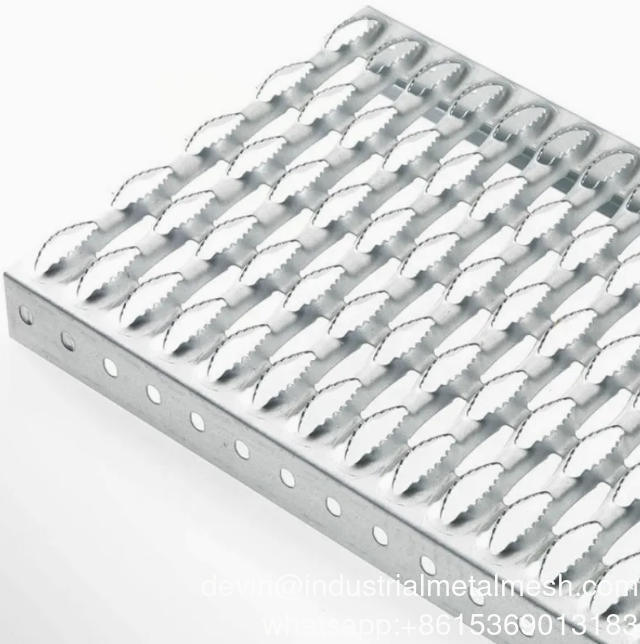

Grip struct perforated steel grating
Diamond Grip Strut Safety Plank Grating provides a maximum safety and slip resistant option against mud, ice, snow, grease, oil or detergents on plank, walkways, catwalks, stairs, etc. The plank grating is usually made of lightweight Low carbon steel Q235, pre-galvanized steel plate, Stainless steel 304 or 316, go througn cutting the right size easily, punching the serrated diamond hole, and bending into depth as your required.
The grip strut plank grating includes regular and heavy duty types, which can be 10' or 12' lengths and 4.75'' to 24'', diamonds
of ,channel heights of , metal wall thick of 12 & 14 ga. Pre-Galvanized and Plain Steel, 10 & 12 ga. 5052-H32 Aluminum, 16 ga.Stainless Steel 304 and 316 ,Widths 4-3/4'', 7'', 9-1/2'', 11-3/4'', 18-3/4'', 24'' , Heights 1-1/2'', 2'', 2-1/2'',3''Lengths,or cut to size, with necessary accessories of splice plates, anchor plates, diamond washer bolt kits.
| Item No. | Item Description | Standard Width | Standard Channel Depth | Standard Length |
| 1 | 2-Diamond Plank | 4.75'' (120.65mm) |
1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm) |
10' and 12' (3048mm and 3657.6mm) |
| 2 | 3-Diamond Plank |
7'' (120.65mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 3 | 4-Diamond Plank |
9.5'' (241.3mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 4 | 5-Diamond Plank |
11.75'' (298.45mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 5 | 8-Diamond Plank |
18.75'' (476.25mm) |
1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 6 | 10-Diamond Plank |
24'' (609.6mm) |
2'' and 3'' (50.8mm and 76.2mm) |
10' and 12' (3048mm and 3657.6mm) |
| 7 | 10-Diamond Walkway |
24'' (609.6mm) |
4.5'' (114.3mm) |
10' and 12' (3048mm and 3657.6mm) |
