تفاصيل المنتج:
شروط الدفع والشحن:
|
| مادة: | أسلاك الفولاذ المقاوم للصدأ | يكتب: | شبكة حبل ، نوع الطويق أو النوع المعقود |
|---|---|---|---|
| تطبيق: | حماية شبكة | نمط نسج: | نسج عادي |
| تقنية: | المنسوجة | رقم الموديل: | شبكة حبل أسلاك الفولاذ |
| خدمة المعالجة: | نسج | مادة خام: | الفولاذ المقاوم للصدأ 304316 ، الأسلاك المجلفنة |
| مُكَمِّلات: | يمكن توفير كل شيء | بريد إلكتروني: | devin@industrialmetalmesh.com |
| واتس اب: | +8615369013183 | ||
| إبراز: | stainless steel wire rope mesh fence,stainless steel rope net,wire rope mesh with warranty,stainless steel rope net,wire rope mesh with warranty |
||

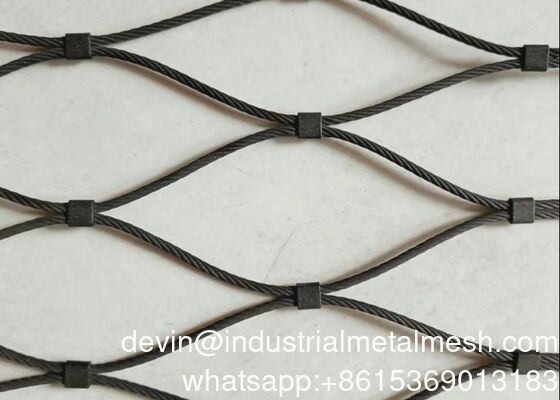

Stainless Steel Wire Rope Mesh/Wire Rope Net/Stainless Steel Rope Mesh Fence
| Stainless Steel Woven Cable Nets Sheet | |||||
| Item No.s | Cable Diameter | Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs. | |
| M-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1,600 |
| M-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1,600 |
| M-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1,600 |
| M-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1,600 |
| M-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1,600 |
| M-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| M-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| M-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| M-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| M-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| M-2076W | 5/64 | 2 | 3 x 3 | 76 x 76 | 676 |
| M-2060W | 5/64 | 2 | 2.4 x 2.4 | 60 x 60 | 676 |
| M-2050W | 5/64 | 2 | 2 x 2 | 51 x 51 | 676 |
| M-2038W | 5/64 | 2 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| M-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| M-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| M-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| M-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| M-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| M-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| M-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| M-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
| M-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 | 270 |
| Stainless Steel Woven Cable Nets Sheet | |||||
| Item No.s | Cable Diameter | Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs. | |
| M-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1,600 |
| M-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1,600 |
| M-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1,600 |
| M-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1,600 |
| M-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1,600 |
| M-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| M-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| M-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| M-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| M-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| M-2076W | 5/64 | 2 | 3 x 3 | 76 x 76 | 676 |
| M-2060W | 5/64 | 2 | 2.4 x 2.4 | 60 x 60 | 676 |
| M-2050W | 5/64 | 2 | 2 x 2 | 51 x 51 | 676 |
| M-2038W | 5/64 | 2 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| M-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| M-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| M-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| M-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| M-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| M-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| M-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| M-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
| M-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 | 270 |
