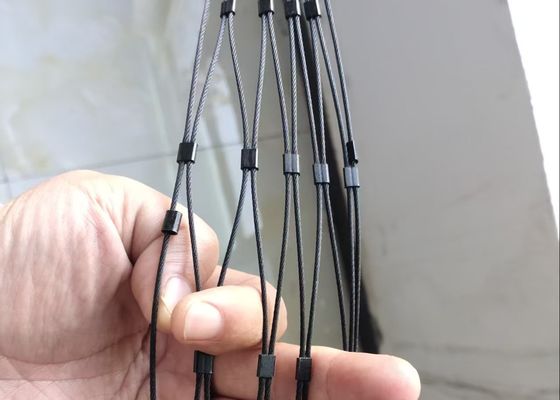

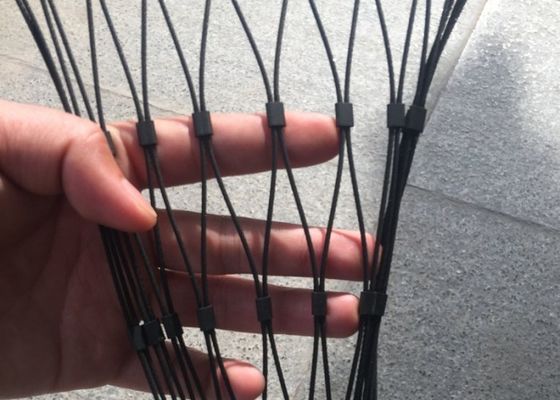

Ferrule Type Stainless Steel 316 Rope Mesh For Balustrade
Stainless steel wire rope ferrule mesh also called ferruled cable mesh, ferrule rope mesh, stainless steel sleeve mesh, X-tent ferrule mesh, webnet with sleeve, etc.
As for the stainless steel wire rope ferrule mesh, the steel wire rope is neither woven nor across. It is a structure of stainless steel wire ropes that are parallel to each other and are connected to each other and bent by the stainless steel ferrules. The structure of the wire rope is 7 x 7 or 7 x19. The standard mesh angle is 60 °. All components are made from AISI 304 or AISI 316 material groups.
Specifications:
Cable material: high tensile stainless steel AISI 304, 304L, 316, 316L.
Cable diameter: 1.0–4.0 mm.
Cable construction: 7 × 7 (1.0mm,1.2mm,1.6 mm, 2 mm or 2.5 mm), 7 × 19 (3.2 mm, 4 mm).
Ferrules material: stainless steel, aluminum alloy, tinned copper, nickel plated copper.
There are several types of ferrules: 8-shape, oval shape, eye ferrules, and open ferrules.
Diamond sizes: 20–260 mm.
Mesh opening angles: 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Surface treatment: Natural color, Black color, Bronze color.
Mesh panel size: You can provide the dimensions of the mesh panel and we will produce it according to the size you provide.
|
|||||||||
| Item No. | Wire Cable Diameter | Wire Cable Diameter(inch) | Aperture (mm) | Wire Cable Structure | |||||
| #1240 | 1.2mm | 3/64" | 40 x 69 | 7×7 | |||||
| #1250 | 1.2mm | 3/64" | 50 x 87 | 7×7 | |||||
| #1650 | 1.5mm | 1/16" | 50 x 87 | 7×7 | |||||
| #1660 | 1.5mm | 1/16" | 60 x 104 | 7×7 | |||||
| #1680 | 1.5mm | 1/16" | 80 x 139 | 7×7 | |||||
| #20100 | 2.0mm | 5/64" | 100 x 173 | 7×7 | |||||
| #2060 | 2.0mm | 5/64" | 60 x 104 | 7×7 | |||||
| #2070 | 2.0mm | 5/64" | 70 x 121 | 7×7 | |||||
| #2080 | 2.0mm | 5/64" | 80 x 139 | 7×7 | |||||
| #24100 | 2.4mm | 3/32" | 100 x 173 | 7×7 | |||||
| #24120 | 2.4mm | 3/32" | 120 x 208 | 7×7 | |||||
| #2460 | 2.4mm | 3/32" | 60 x 104 | 7×7 | |||||
| #2490 | 2.4mm | 3/32" | 90 x 156 | 7×7 | |||||
| #32100 | 3.0mm | 1/8" | 100 x 173 | 7×19 | |||||
| #32120 | 3.0mm | 1/8" | 120 x 208 | 7×19 | |||||
| #32150 | 3.0mm | 1/8" | 150 x 260 | 7×19 | |||||
| #3290 | 3.0mm | 1/8" | 90 x 156 | 7×19 | |||||
Features:
Effectively prevent people from climbing and accidental falls.
The wire rope mesh is elastic and durable, preventing damage to personnel.
Easy to install, quick to assemble, and flexible in shape.
Lightweight does not place an additional burden on the building.
Translucent perspective, invisible 30 meters away, has no effect on the architectural beauty and urban landscape.
Plants can climb, resist corrosion, rust, have a long service life, are free of maintenance, and last as new.
Flexibility, softness, and sturdiness have become the most attractive feature of stainless steel ferrule mesh. It does not matter whether it is folded or roll. The packaging is small and convenient for transportation.
