تفاصيل المنتج:
شروط الدفع والشحن:
|
| مكان المنشأ:: | هيبي ، الصين | مادة:: | سلك الفولاذ المقاوم للصدأ |
|---|---|---|---|
| يكتب:: | شبكة حبل ، نسيج ، مشبك | طلب:: | حماية شبكة ، ديكور ، حديقة حيوان ، جسر حديدي ، بناء |
| نمط النسج:: | عادي / نسيج قطني طويل / هولندي | تقنية:: | المنسوجة |
| لون:: | فضي أو أسود أو مخصص | حجم الافتتاح:: | 20x20mm ، 25x25mm ، 30x30mm ، 38x38mm ، 50x50mm إلخ |
| البريد الإلكتروني: | devin@industrialmetalmesh.com | ماذا؟: | +8615369013183 |
| إبراز: | 1.5mm Diameter Stainless Steel Wire Rope Mesh,DIN 3055 Stainless Steel Cable Mesh,90% Light Transmission Wire Rope Mesh,DIN 3055 Stainless Steel Cable Mesh,90% Light Transmission Wire Rope Mesh |
||
| Product Type | STAINLESS STEEL WIRE ROPE MESH |
|---|---|
| Flexibility | FLEXIBLE |
| Wire Rope Construction | 7x7 |
| Material | STAINLESS STEEL |
| Material Type | AISI316 |
| Specification | DIN 3055 |
| Finish | ULTRASONIC BATH |
| Nominal Diameter (Metric) | 1.5mm |
| Approx. Net Weight | 1.22kg/m2 |
| Min. Breaking Load (Wire Rope) | 129kgf or 1.27kN |
| Light Transmission | 90% |

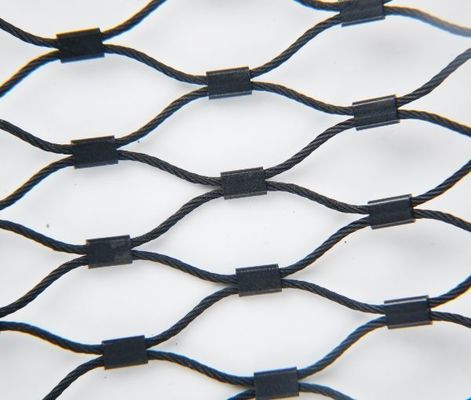

The classic diamond pattern offers superior strength and durability, making it ideal for enclosures requiring robust barriers. The intersecting wires create a visually appealing design that blends well with natural environments.
Featuring wires that intersect at right angles, this contemporary design provides a clean, minimalist appearance while maintaining structural integrity.
| ID | Wire Dia. (inch) | Wire dia.(mm) | Mesh (inch) | Mesh(mm) |
|---|---|---|---|---|
| HM32102 | 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| HM24102 | 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| HM20102 | 5/64 | 2.0 | 4 x 4 | 102 x 102 |
| HM16102 | 1/16 | 1.6 | 4 x 4 | 102 x 102 |
| HM12102 | 3/64 | 1.2 | 4 x 4 | 102 x 102 |
| HM3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| HM2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| HM2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 |
| HM1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| HM1276 | 3/64 | 1.2 | 3 x 3 | 76 x 76 |

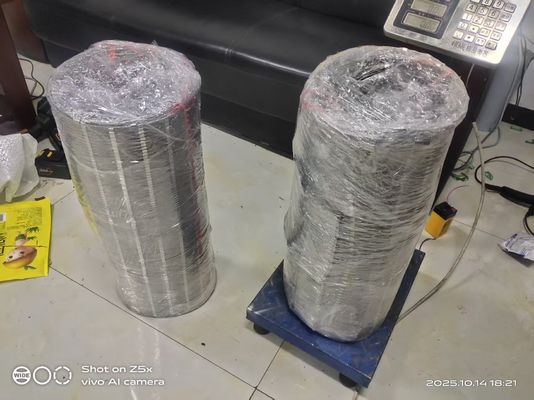

Standard packaging includes OPP bags with carton box protection. Custom logo printing available. Bulk quantities shipped via sea or air freight, while smaller orders are delivered through express couriers (EMS, DHL, UPS, FedEx).
اتصل شخص: Mr. Devin Wang
الفاكس: 86-318-7896133
