| Material: | Polyurethane | Thickness: | 30mm |
|---|---|---|---|
| Hole shape: | Hexagonal | Weaving type: | Plain weave |
| Technic: | Polyurethane | Aperture: | 30mm |

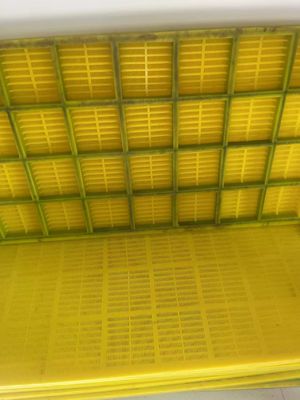

Heavy-Duty Polyurethane Mining Mesh Screen – Durable Polyurethane Material Screening For Mining Operations
POLYURETHANE SCREEN due to their wear resistance and excellent elasticity, are widely used for the classification of all types ofmaterials, whether in dry screening or wet screening. They can beformulated with different hardness levels according to the type of workyou need to perform.
| MODEL | DIMENSION(MM) L*W*H | APERTURE(mm) |
| DZ01S Tension Screen(with steel wire) | 2400*1500*25 | 4*4-6*6 |
| 2400*1500*25 | 8*8-12*12 | |
| 2400*1500*28 | 15*15-35*35 | |
| 2400*1500*30 | 40*40-60*60 | |
| 2400*1500*40 | 65*65-90*90 | |
| accept customized production | ||
| DZ02S Skeleton Screen (with steel skeleton) | 2400*1500*25 | 4*4-6*6 |
| 2400*1500*25 | 8*8-12*12 | |
| 2400*1500*28 | 15*15-35*35 | |
| 2400*1500*30 | 40*40-60*60 | |
| 2400*1500*40 | 65*65-90*90 | |
| accept customized production | ||
| DZ03S Dewatering Screen (with steel skeleton) | 305*305*30 | 0.1*12-2.5*12 |
| 305*305*40 | ||
| 600*600*40 | ||
| 500*550*40 | ||
| 600*2400*40 | ||
| accept customized production | ||
| DZ04S Flip-flow Screen | W330mm*H6-8mm | as the requirements |
| DZ05S High frequency screen | 1220*700 | 0.063mm |
| 1220*840 | 1mm | |
| 2mm | ||
| DZ06S Wave screen | accept customized products for all size and aperture | |
| other polyurethane Screen | accept customized products for all size and aperture | |
Features of our Pu screen
1. Long service time. lts service life is morethan 8 times that of the ordinary metalproducts and over 3.9 times that of therubber screens.
2. Large bear capacity. lt is with the perfor-mance of good resilence, high strength toabsorb the impact, and with high wearresistance, high tensile strength, so its ca-pacity is more than 2.5 times that of rubberand steel screens.
3. High sieving efficiency. On the base ofmeeting the size distribution, the mesh slotis made into the shape ofrectangle. Whichgurantees the ratio of qualified fine materialand improves the screening effciency.
4. No blocking . With the resilience nature.
the aperture is prevented from blockage.
5.Low niose. Polyurethane sieve machinecan reduce noise 5-20 decibels than metalmesh.
6.Low maintenance cost. Easy to installand simple to replace, long service timeensures the low maintenance cost.
7.Large amount of ore sieving. Polyure-thane screen mesh can sieve more than200000 tons of ores.
